Grundfos 97915621 - CR 15-6 P-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97915621

Price:
Sale price$7,984.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97915621 - CR 15-6 P-GJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97915621 - CR 15-6 P-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CR 15-6 model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Single & Multi-Stage, High Pressure, and Vertical Multistage types.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710626330508
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 190.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 393.7 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 104.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3470 rpm
Pump version P
Rated flow 90.3 US gpm
Rated head 300.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Type of connection ANSI / JIS
Version P

Motor Curves

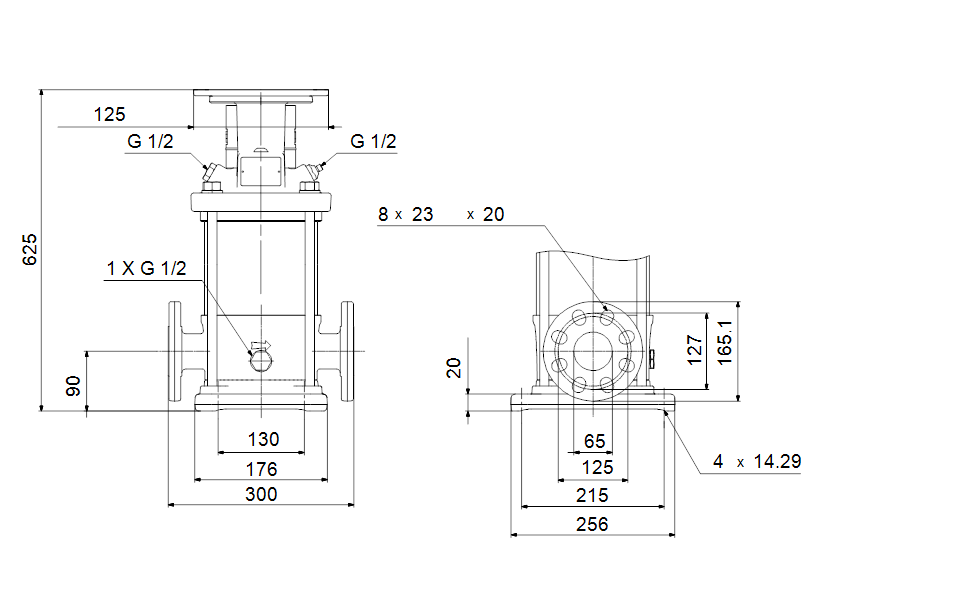

Dimensional Drawing
