Grundfos 97535949 - CR 15-6 H-G22-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,694.26
GRUNDFOSSKU: 97535949

Price:
Sale price$3,600.74 Regular price$6,295.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97535949 - CR 15-6 H-G22-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97535949 - CR 15-6 H-G22-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This pump features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under various types including CR H, CRN H, and is suitable for horizontal models, excluding models 95 through 255. With its versatile application range, the CR 15-6 is perfect for both single and multi-stage pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 254.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 384.9 ft
Maximum operating pressure 232.06 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3470rpm
Net weight 152.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 326.1 ft
Rubber V
Sales region USA
Shaft Product name:CR 15-6 H-G22-A-V-HQQV
Shaft seal HQQV
Stages 6
Standard NEMA
Version H

Motor Curves

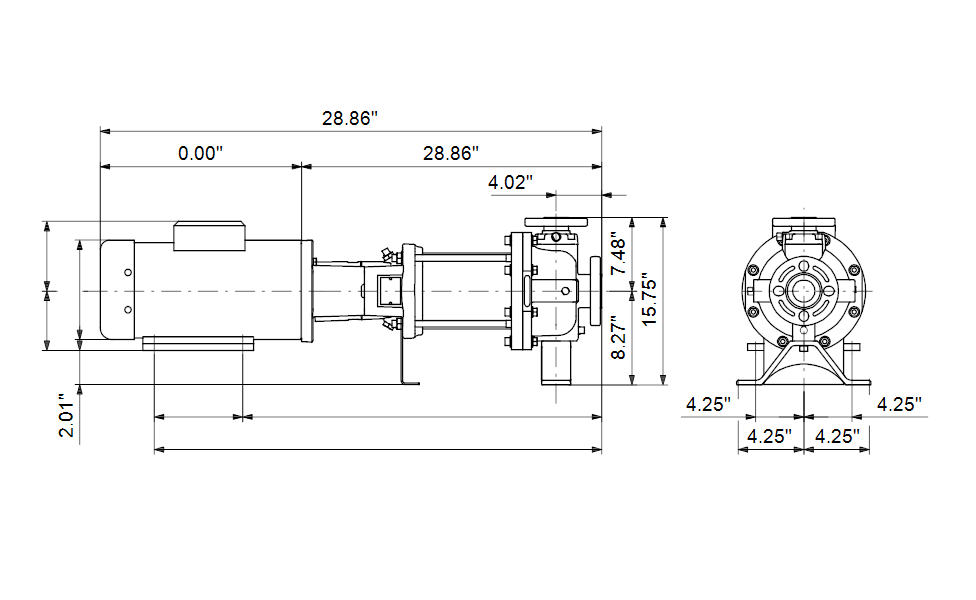

Dimensional Drawing
