Grundfos 96795253 - CR 15-5 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96795253

Price:
Sale price$7,325.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96795253 - CR 15-5 A-GJ-A-E-HQQE is a vertical multistage centrifugal pump intended for industrial and commercial high-pressure in-line applications; suitable for technicians and service departments needing replacement units.

Key features

  • Engineered by the original manufacturer for industrial service and repair use
  • Vertical, multistage centrifugal design for high-pressure, in-line duty
  • Compact footprint and staged impellers provide reliable pressure boosting and efficient flow handling

Applications

Typical uses include boiler feed, pressure boosting, industrial water supply, circulation systems, and other high-pressure process applications.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96795253

EAN 5700310582399
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 99.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 82.02 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 83.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 1735 rpm
Pump version A
Rated flow 45.3 US gpm
Rated head 64.96 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type of connection ANSI / JIS
Version A

Motor Curves

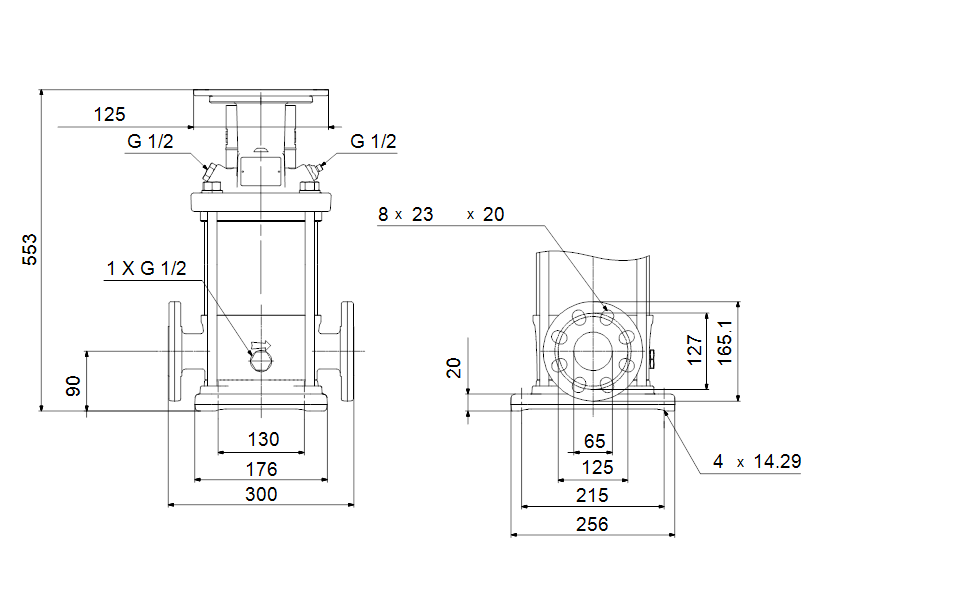

Dimensional Drawing
