Grundfos 92723270 - CR 15-5 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92723270

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92723270 - CR 15-5 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92723270 - CR 15-5 A-F-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and various fluid transfer tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 15-5 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118670513
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor FF265
Frequency converter NONE
Gross weight 132.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 334.7 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor standard IEC
Net weight 106.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated flow 90.3 US gpm
Rated head 266.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard IEC
Type of connection DIN
Version A

Motor Curves

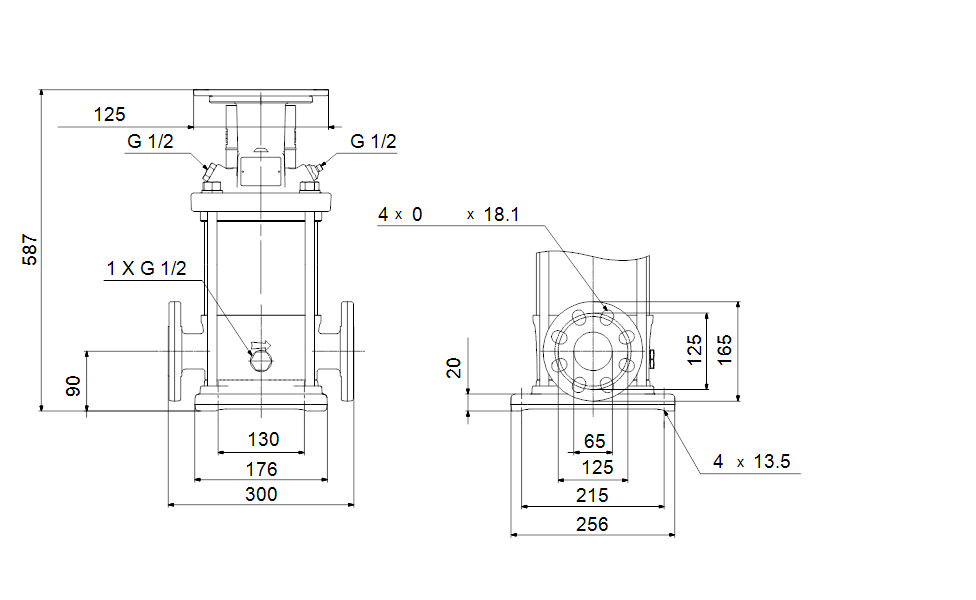

Dimensional Drawing
