Grundfos 98684044 - CR 15-4 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98684044

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98684044 - CR 15-4 A-F-A-E-HQQE is a vertical, multistage centrifugal pump intended for industrial and commercial service where reliable high-pressure fluid transfer is required. Typical users include maintenance teams and pump service professionals seeking replacement or repair parts.

Key features

  • Vertical multistage centrifugal configuration for consistent high-pressure delivery
  • Inline design suited for compact installations and system integration
  • Service-oriented unit that simplifies replacement and reduces downtime

Applications

Suitable for high-pressure boosting, boiler feed, cooling systems, process water circulation, and other industrial in-line multistage pumping duties.

Compatibility note: Match the exact model or SKU before ordering. For help or to confirm fit, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98684044

EAN 5711499573313
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 207.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 186.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 85.2-88.1 %
Motor efficiency at 3/4 load 88.6-88.2 %
Motor efficiency at full load 1 88.1-88.1 %
Motor standard IEC
Motor type 112CA
Net weight 159.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.87-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated current 13.6/7.90 A
Rated flow 74.8 US gpm
Rated head 147 ft
Rated power - P2 4 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard IEC
Starting current 1000-1110 %
Type 112CA
Type of connection DIN
Version A

Motor Curves

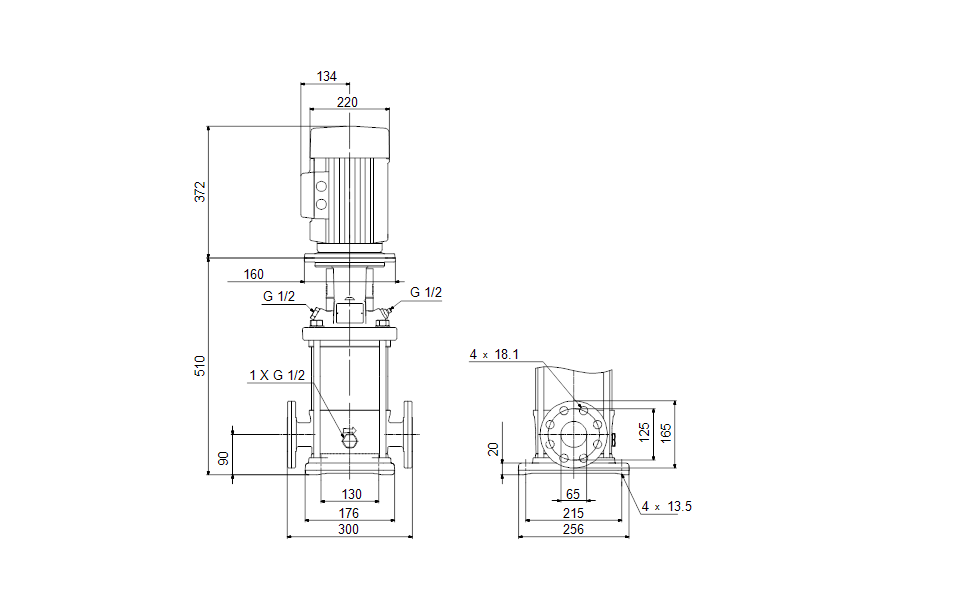

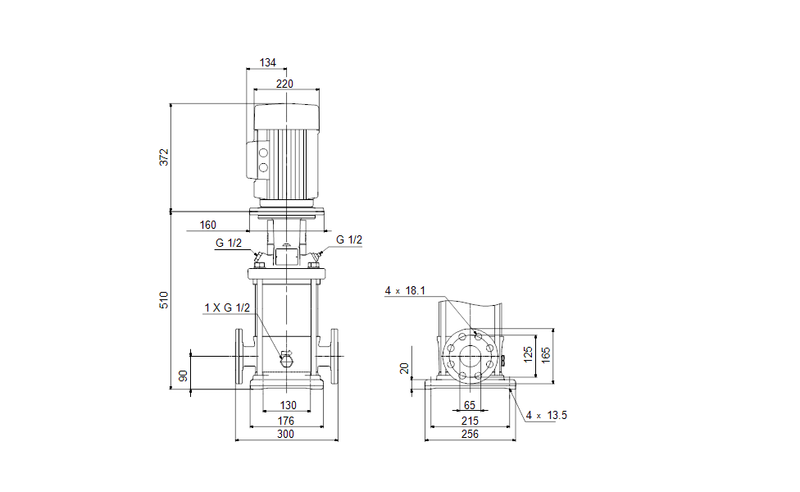

Dimensional Drawing

DWiring Diagram
