Grundfos 97652819 - CR 15-4 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,585.36
GRUNDFOSSKU: 97652819

Price:
Sale price$4,791.64 Regular price$8,377.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97652819 - CR 15-4 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97652819 - CR 15-4 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This pump features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under the CR series, known for its versatility and adaptability in various settings. The CR 15-4 model is particularly suited for applications requiring high flow rates and pressure, making it a preferred choice among professionals.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to chat with us or call our team. Trust Pump-Stop for all your pump needs!

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 331.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 15-4 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 255.3 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
n rpm F
Net weight 229.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 7.5 HP
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 HP
Pump version H
Rated current 19,5-18,1/9,09 A
Rated flow 79.3 US gpm
Rated head 213.3 ft
Rated power - P2 7.5 HP
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 15-4 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 4
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Version H

Motor Curves

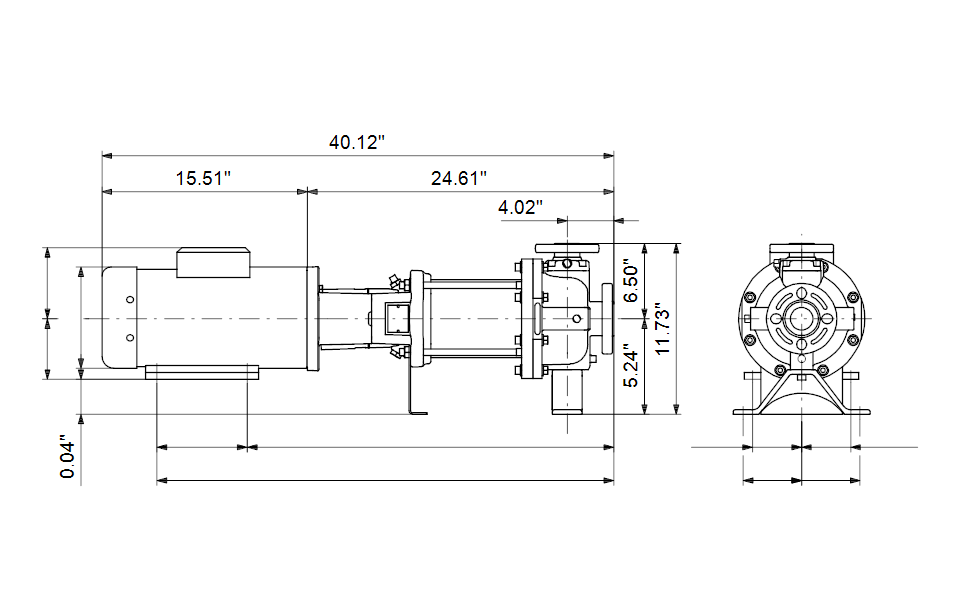

Dimensional Drawing

DWiring Diagram
