Grundfos 98056373 - CR 15-3 P-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98056373

Price:
Sale price$9,506.94
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98056373 - CR 15-3 P-B-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, while its multistage design allows for optimal performance in demanding environments. The CR 15-3 P-B-A-E-HQQE is perfect for applications requiring consistent flow rates and pressure, making it suitable for both commercial and industrial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710628223549
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency converter NONE
Gross weight 192.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 200.5 ft
Maximum operating pressure 10 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
Net weight 176.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 10
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version P
Pumped liquid Water
Rated current 14
Rated flow 90.3 US gpm
Rated head 152.9 ft
Rated power - P2 3.7 kW
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 3
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Type of connection Oval / NPT(F)
Version P

Motor Curves

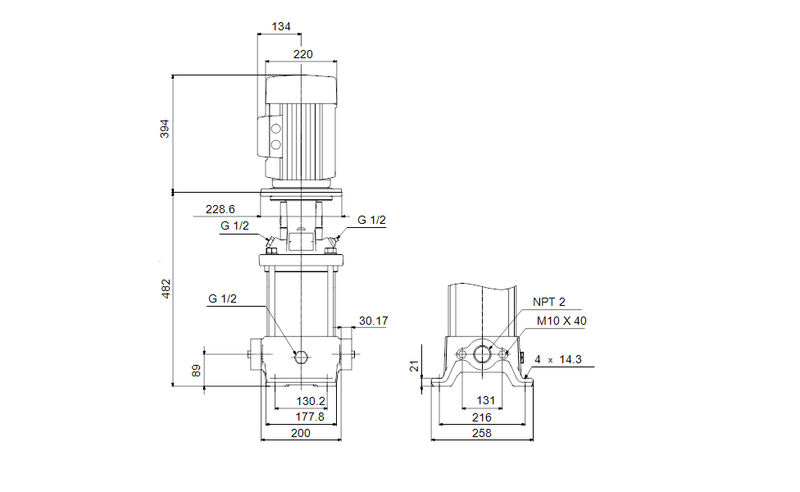

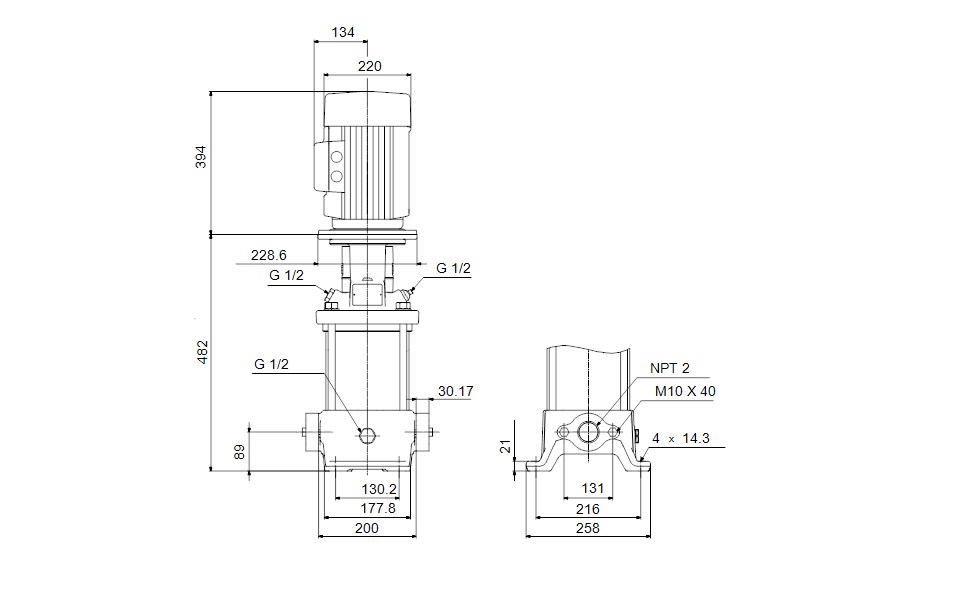

Dimensional Drawing

DWiring Diagram
