Grundfos 97652817 - CR 15-2 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,073.90
GRUNDFOSSKU: 97652817

Price:
Sale price$4,108.10 Regular price$7,182.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97652817 - CR 15-2 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the CR series, known for its robust construction and versatility. It is tagged under various classifications including Cr H, Cr H Crn H, Cre H, Crne H, and CRN-CRT- CR FPV, ensuring compatibility with a wide range of systems. Please note that this model does not include the 95 through 255 series.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97652817. If you encounter any difficulties in identifying the correct item, our team is here to help you navigate your options.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 302.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 15-2 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 127.3 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
n rpm F
Net weight 201.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 5.5 HP
Phase 3
Power (P2) required by pump 5.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 HP
Pump version H
Rated current 14,1-13,1/7,29 A
Rated flow 79.3 US gpm
Rated head 102.7 ft
Rated power - P2 5.5 HP
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 15-2 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Version H

Motor Curves

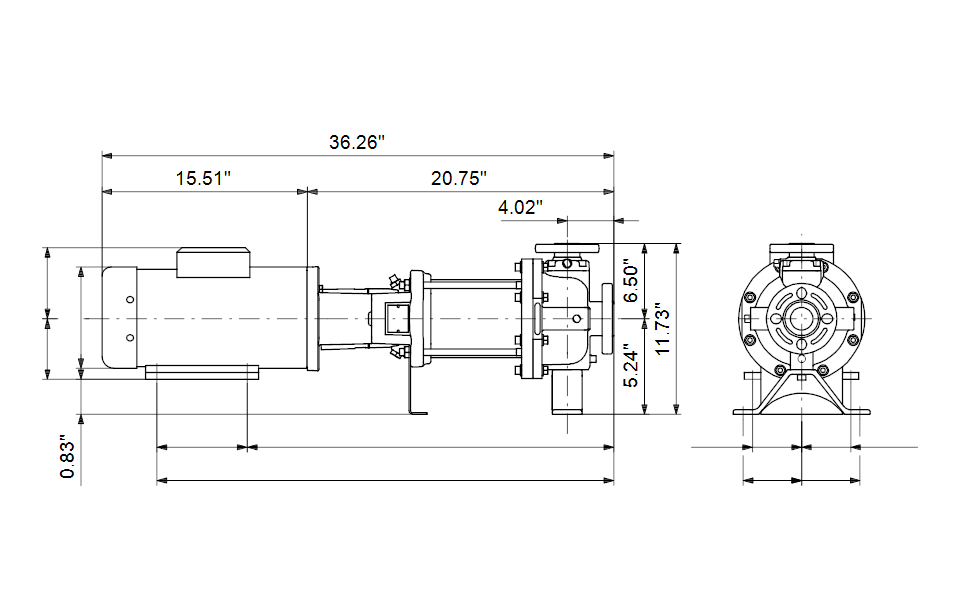

Dimensional Drawing

DWiring Diagram
