Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 15-12 A-GJ-A-E-HQQE · Vertical Multistage Centrifugal Pump
The Grundfos 99064125 (CR 15-12 A-GJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 90.3US gpm at 649.3ft. Rated 220-277D/380-480YV, 3.0-Phase, 60 Hz.
Power
25HP
Voltage
220-277D/380-480YV
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
649.3ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Vertical Multistage Design
Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.
Stainless Steel Wetted Parts
All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.
QuickTight Connection System
No special tools needed for coupling. Integrated coupling design reduces installation and service time.
Wide Configuration Range
Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.
Authorized Grundfos Distributor
PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.
Contact PumpStop for Sizing
The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.
Model Information — CR 15-12 A-GJ-A-E-HQQE
Series: CR
Model Code: CR 15-12 A-GJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
| Model Number | 99064125 |
| Product Series | CR |
| Series Description | Vertical Multistage Centrifugal Pump |
| Power | 25HP |
| Voltage | 220-277D/380-480YV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3520-3560rpm |
| Pump Speed | 3540rpm |
| Full Load Current | 59,5-48,5/34,5-28,0A |
| Motor Type | 160BC |
| Motor Protection | PTC |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 91.0-91.7% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 90.3US gpm |
| Nominal Head | 649.3ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 140°F |
| Inlet Connection | DN 50 |
| Outlet Connection | DN 50 |
| Pipe Pressure Rating | PN 25 |
| Pipe Standard | ANSI / JIS |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, EAC, UKCA, SEPRO |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-277D/380-480YV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 15-12 A-GJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5712606065103
- Actual impeller diameter
- 4.13 in
- Approvals
- EAC
- Built-in motor protection
- PTC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- GJ
- Connection
- PN 25
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 4.13 in
- DOE Pump Energy Index CL
- 0.91
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Flange rating inlet
- 300 lb
- Flange size for motor
- FF300
- Frequency converter
- NONE
- Gross weight
- 454.0 lb
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 6
- Max pressure at stated temp
- 363 psi / 250 °F
- Maximum ambient temperature
- 140 °F
- Maximum head
- 800.6 ft
- Maximum operating pressure
- 25 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor
- FF300
- Motor efficiency at 1/2 load
- 92.4-91.8 %
- Motor efficiency at 3/4 load
- 92.3-93.1 %
- Motor efficiency at full load 1
- 91.0-91.7 %
- Motor standard
- IEC
- Motor type
- 160BC
- Net weight
- 392.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 18.5 kW
- Power factor 1
- 0.89-0.84
- Pressure rating for connection
- PN 25
- Pressure sensor
- N
- Pump
- 18.5 kW
- Pump speed on which pump data are based
- 3540 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 59
- Rated flow
- 90.3 US gpm
- Rated head
- 649.3 ft
- Rated power - P2
- 18.5 kW
- Rated speed
- 3520-3560 rpm
- Rated voltage
- 3 x 220-277D/380-480Y V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1
- Size of inlet connection
- DN 50
- Size of outlet connection
- DN 50
- Stages
- 12
- Standard
- IEC
- Starting current
- 670-1100 %
- Type
- 160BC
- Type of connection
- ANSI / JIS
- Version
- A

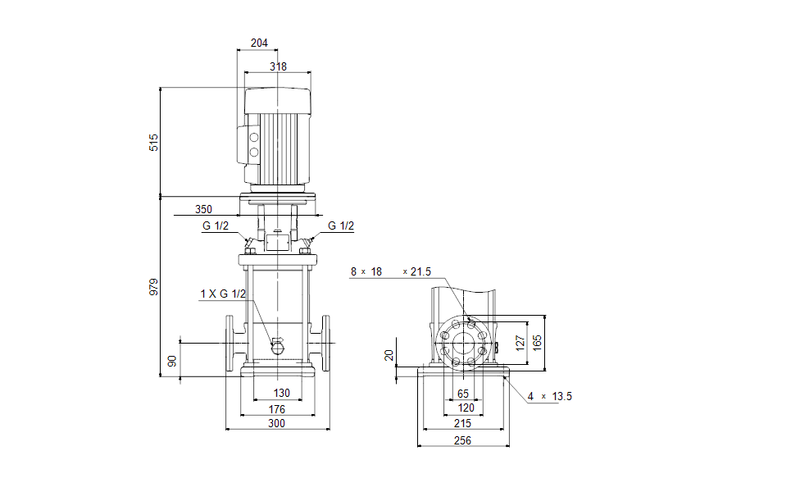

Dimensional Drawing
Wiring Diagram
