Grundfos 98828287 - CR 15-12 A-F-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98828287

Price:
Sale price$20,801.39
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos CR 15-12 A-F-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. It fits inline, high-pressure systems and is commonly used by service technicians and facilities teams for booster, transfer, and process duties.

Key features

  • Vertical multistage centrifugal design for compact, stacked impeller operation
  • Suitable for in-line and high-pressure applications, indicated by service and shop tags
  • Delivers reliable pressure and steady flow for general industrial pumping needs

Applications

Typical uses include water booster systems, industrial process feed, HVAC circulation, and other high-pressure inline duties where a vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98828287

EAN 5712601983969
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 454.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 800.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.4-91.8 %
Motor efficiency at 3/4 load 92.3-93.1 %
Motor efficiency at full load 1 91.0-91.7 %
Motor standard IEC
Motor type 160BC
Net weight 392.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.89-0.84
Pressure rating for connection PN 25
Pressure sensor N
Pump 18.5 kW
Pump speed on which pump data are based 3540 rpm
Pump version A
Pumped liquid Water
Rated current 34.5-28.0 A
Rated flow 90.3 US gpm
Rated head 649.3 ft
Rated power - P2 18.5 kW
Rated speed 3520-3560 rpm
Rated voltage 3 x 380-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard IEC
Starting current 670-1100 %
Type 160BC
Type of connection DIN
Version A

Motor Curves

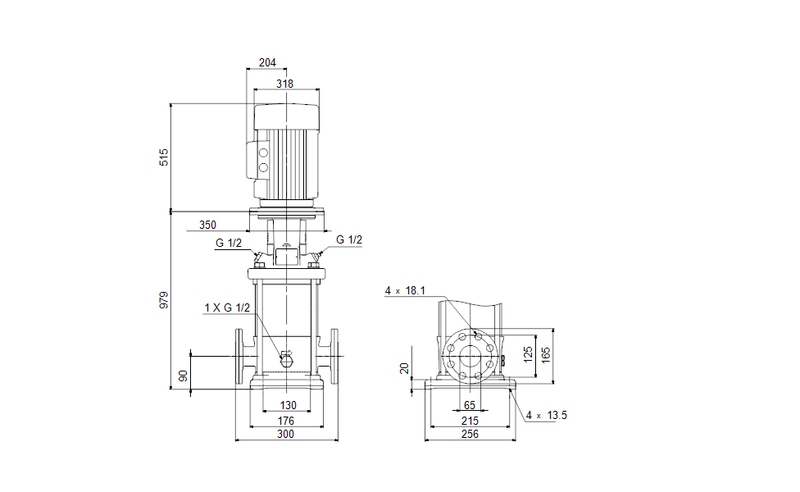

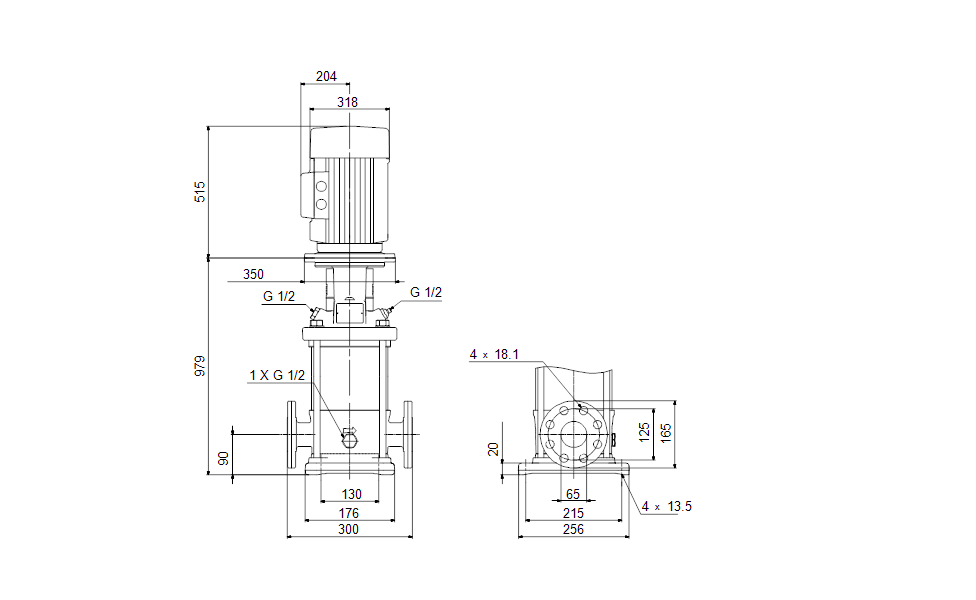

Dimensional Drawing

DWiring Diagram
