Grundfos 96983127 - CR 15-10 H --- | Vertical | Multistage | Centrifugal

Save $6,678.24
GrundfosSKU: 96983127

Price:
Sale price$7,234.76 Regular price$13,913.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 15-10 H --- · Vertical Multistage Centrifugal Pump
CR20HP230/460V3-Phase60 HzNEMA Premium / IE3 60HzTEFCStainless steel

The Grundfos 96983127 (CR 15-10 H ---) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 79.3US gpm at 538.4ft. Rated 230/460V, 3-Phase, 60 Hz.

Power
20HP
Voltage
230/460V
Phase
3-Phase
Max Flow
79.3US gpm
Max Head
538.4ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 15-10 H ---
Series: CR
Model Code: CR 15-10 H ---
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: Class 300
Technical Specifications
Model Number 96983127
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 20HP
Voltage 230/460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3520rpm
Pump Speed 3497rpm
Full Load Current 46/23A
Motor Type BALDOR
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 79.3US gpm
Nominal Head 538.4ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 2inch
Outlet Connection 2inch
Pipe Pressure Rating Class 300
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 15-10 H ---
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700315288562
Applications Pressure boosting, Industrial applications
Approvals on nameplate ANSI/NSF61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection Class 300
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 1140.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 10
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 636.2 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 875.0 lb
Number of poles 2
Power (P2) required by pump 15 kW
Pressure rating for connection Class 300
Product family CR-H
Pump 15 kW
Pump speed on which pump data are based 3497 rpm
Pump version H
Pumped liquid Water
Rated current 46/23 A
Rated flow 79.3 US gpm
Rated head 538.4 ft
Rated power - P2 15 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region USA
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 10
Standard NEMA
Type BALDOR
Version H

Motor Curves

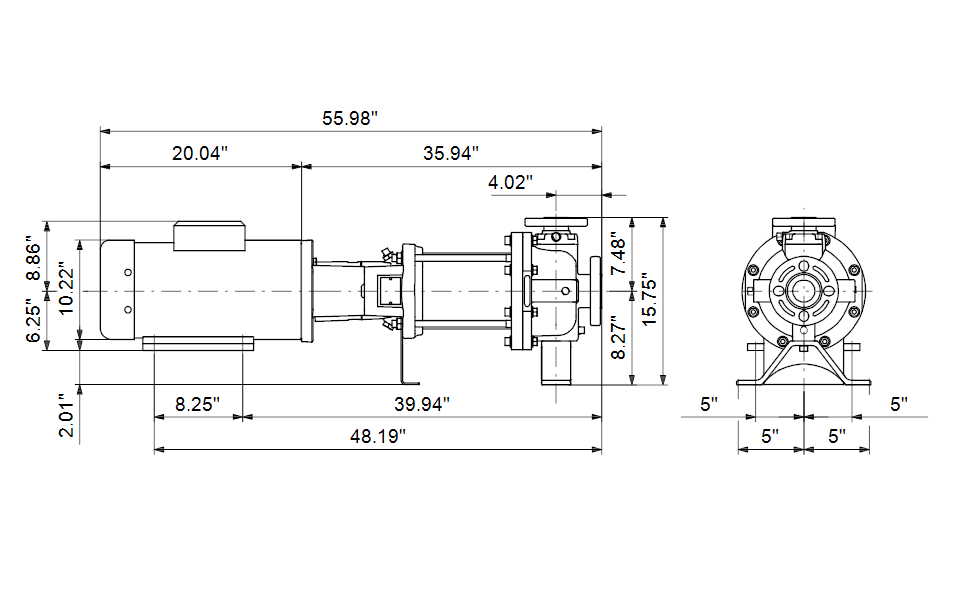

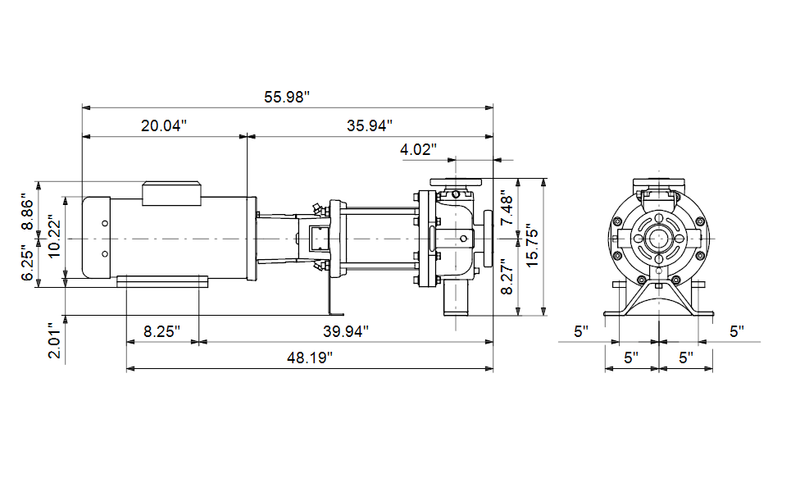

Dimensional Drawing

DWiring Diagram
