Grundfos 98490588 - CR 15-10 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98490588

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98490588 - CR 15-10 A-F-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure systems.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CR 15-10 A-F-A-E-HQQE is capable of handling a wide range of fluids, providing optimal performance for both commercial and industrial needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711496028045
Actual impeller diameter 104.8 mm
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Diameter 104.8 mm
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 190.0 kg
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 203 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.1-91.3 %
Motor efficiency at 3/4 load 91.8-92.3 %
Motor efficiency at full load 1 90.2-91.0 %
Motor standard IEC
Motor type 160BB
Net weight 162.0 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.90-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version A
Pumped liquid Water
Rated current 48
Rated flow 20.5 m³/h
Rated head 163.4 m
Rated power - P2 15 kW
Rated speed 3520-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard IEC
Starting current 580-890 %
Type 160BB
Type of connection DIN
Version A

Motor Curves

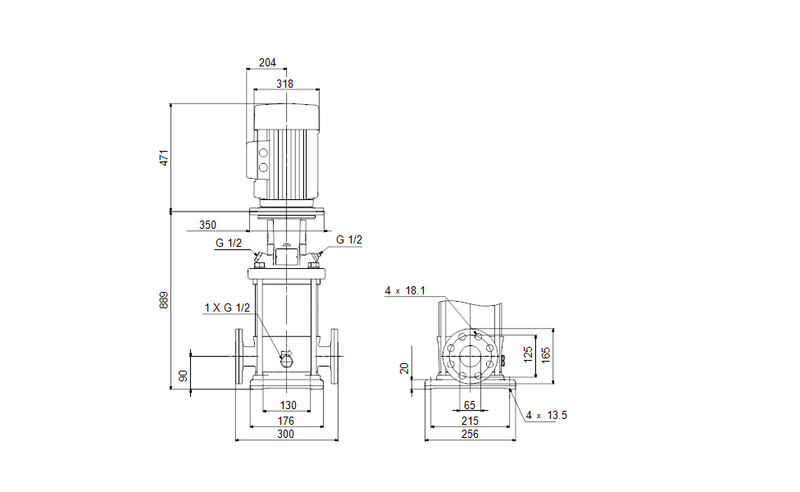

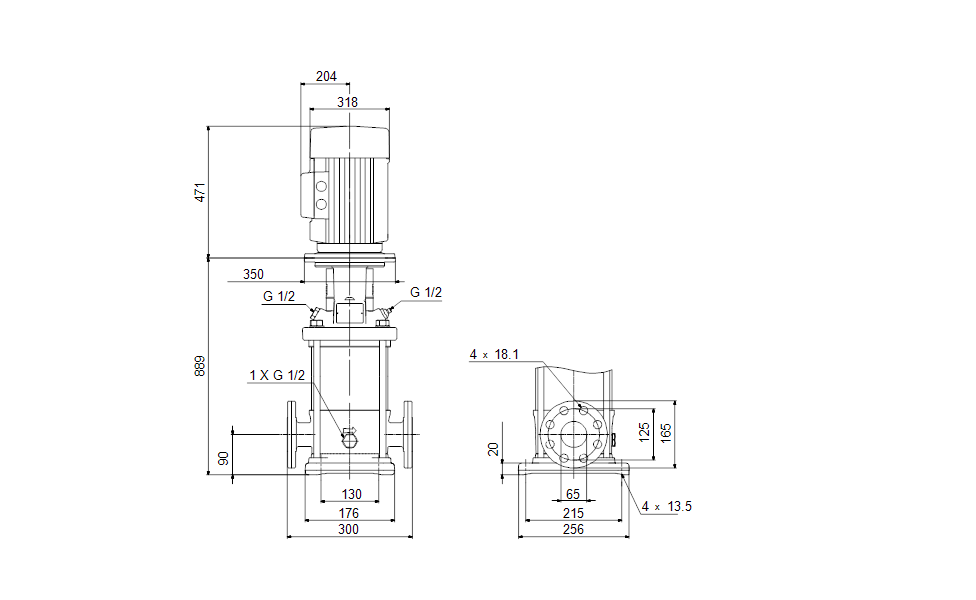

Dimensional Drawing

DWiring Diagram
