Grundfos 97680269 - CR 15-10 H-GB-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,726.60
GRUNDFOSSKU: 97680269

Price:
Sale price$4,980.40 Regular price$8,707.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97680269 - CR 15-10 H-GB-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97680269 - CR 15-10 H-GB-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This pump features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 15-10 model is specifically tailored for horizontal installations, providing a compact solution without compromising on power.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GB
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 287.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 636.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3497rpm
Net weight 165.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 538.4 ft
Rubber E
Sales region USA
Shaft Product name:CR 15-10 H-GB-A-E-HQQE
Shaft seal HQQE
Stages 10
Standard NEMA
Version H

Motor Curves

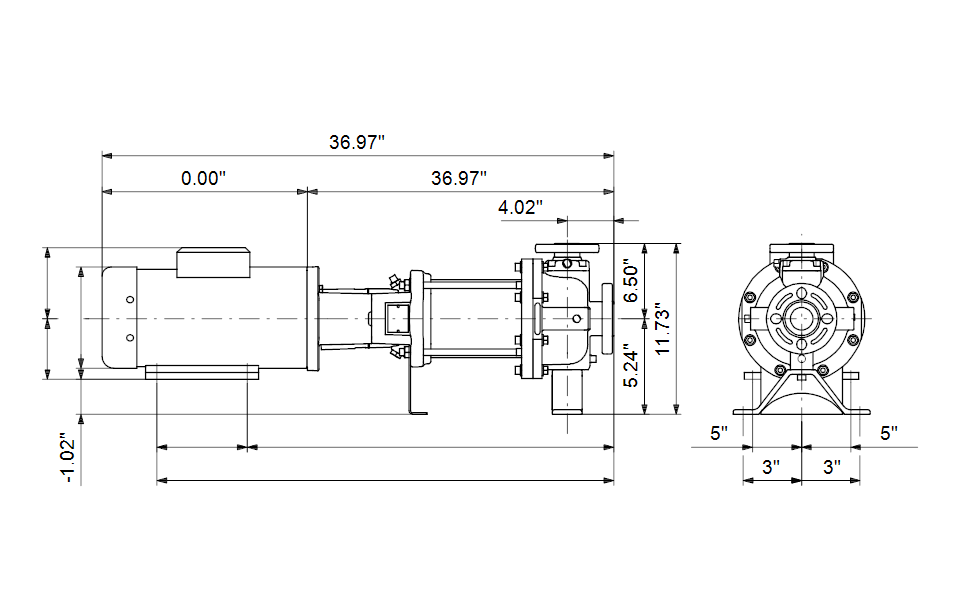

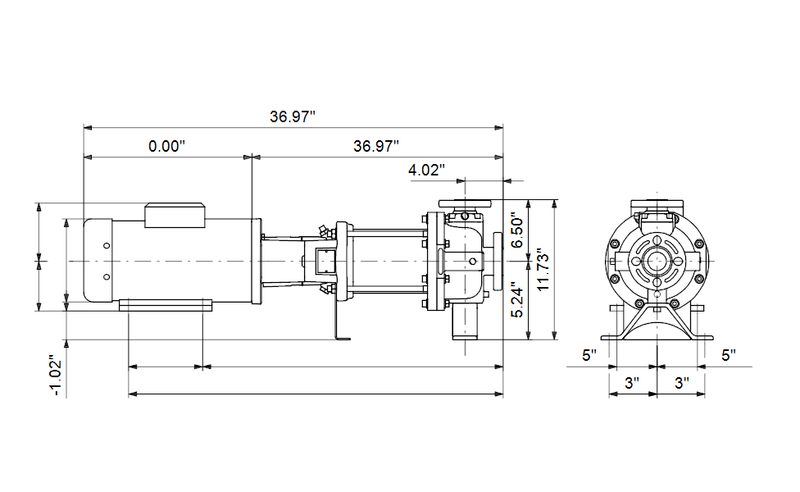

Dimensional Drawing
