Grundfos 97665091 - CR 15-10 B-GJ-A-E-HQQK | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97665091

Price:
Sale price$14,888.89
or Call for most up to date lead times. (781) 281-8905

Description

CR 15-10 B-GJ-A-E-HQQK Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.

EAN 5710620707917
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber E
Code for shaft seal HQQK
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 238.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 666 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 126.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3497 rpm
Pump version B
Rated flow 90.3 US gpm
Rated head 529.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type of connection ANSI / JIS
Version B

Motor Curves

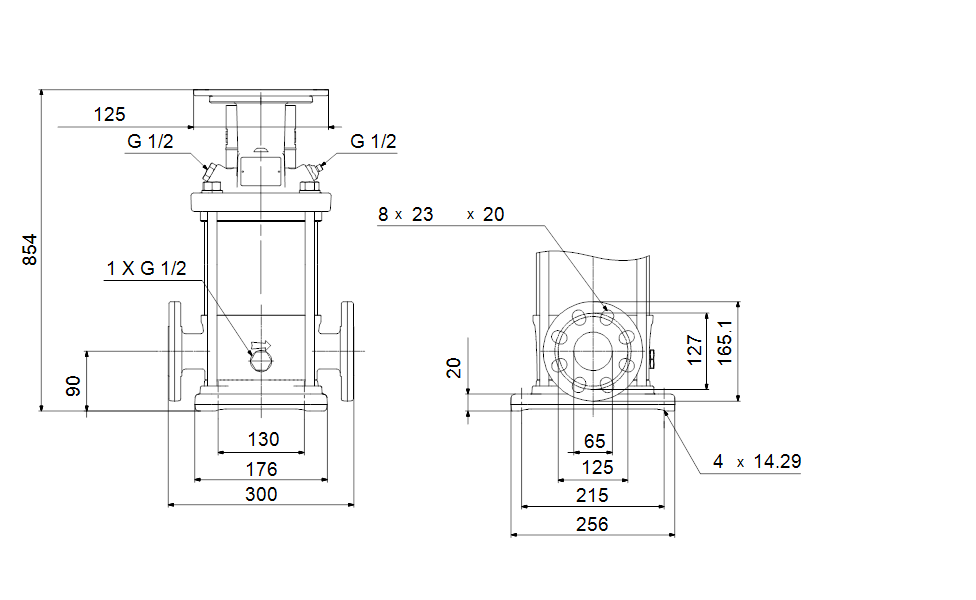

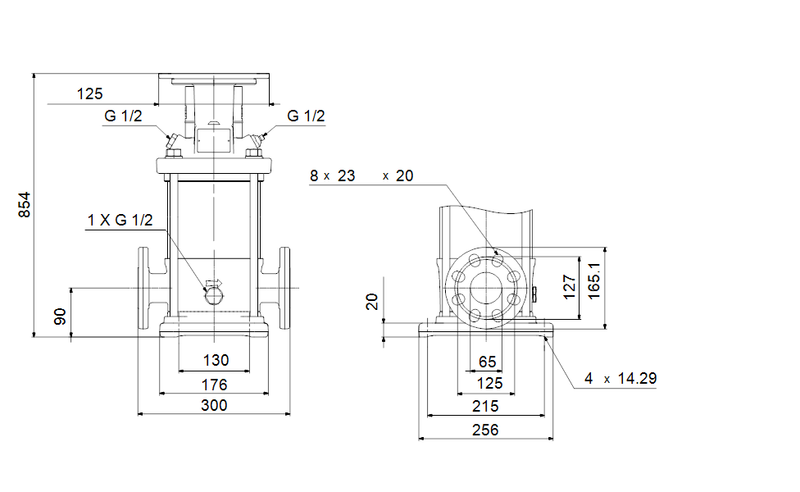

Dimensional Drawing
