Grundfos 96545892 - CR 15-10 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96545892

Price:
Sale price$10,159.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96545892 - CR 15-10 A-F-A-E-HQQE is a vertical multistage centrifugal replacement pump used in industrial and commercial high-pressure in-line systems. It suits technicians and facilities managers seeking reliable service parts for multistage pumping setups.

Key features

  • Vertical, in-line multistage centrifugal design for compact footprint and staged pressure development
  • Service-special configuration compatible with high-pressure and multi-stage applications
  • Offers consistent flow and pressure control for process, booster, and water transfer uses

Applications

Typical uses include industrial process boosting, high-pressure water transfer, boiler feed, and closed-loop circulation where a vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96545892

EAN 5700398427308
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF300
Frequency converter NONE
Gross weight 198.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 666 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor standard IEC
Net weight 137.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version A
Pumped liquid Water
Rated flow 90.3 US gpm
Rated head 536.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard IEC
Type of connection DIN
Version A

Motor Curves

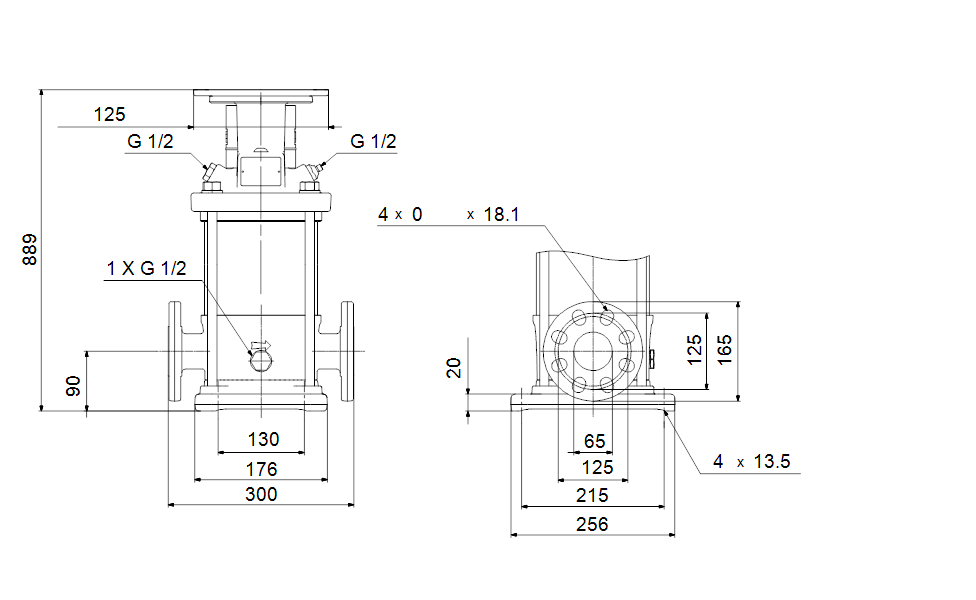

Dimensional Drawing
