Grundfos 92680075 - CR 125-1-1 B-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92680075

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92680075 - CR 125-1-1 B-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92680075 - CR 125-1-1 B-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 125-1-1 model features a robust design that ensures longevity and optimal performance. Its multistage configuration allows for increased pressure capabilities, making it suitable for both commercial and industrial environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118037224
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 284TSC
Frequency converter NONE
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 104 °F
Maximum head 123 ft
Maximum operating pressure 16 bar
Model A
Motor 284TSC
Motor efficiency at 1/2 load 0.91
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type WEG
Net weight 728.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.88
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3538 rpm
Pump version B
Pumped liquid Water
Rated current 57.6/28.8 A
Rated flow 660 US gpm
Rated head 78.74 ft
Rated power - P2 18.5 kW
Rated speed 3545 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 1
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version B

Motor Curves

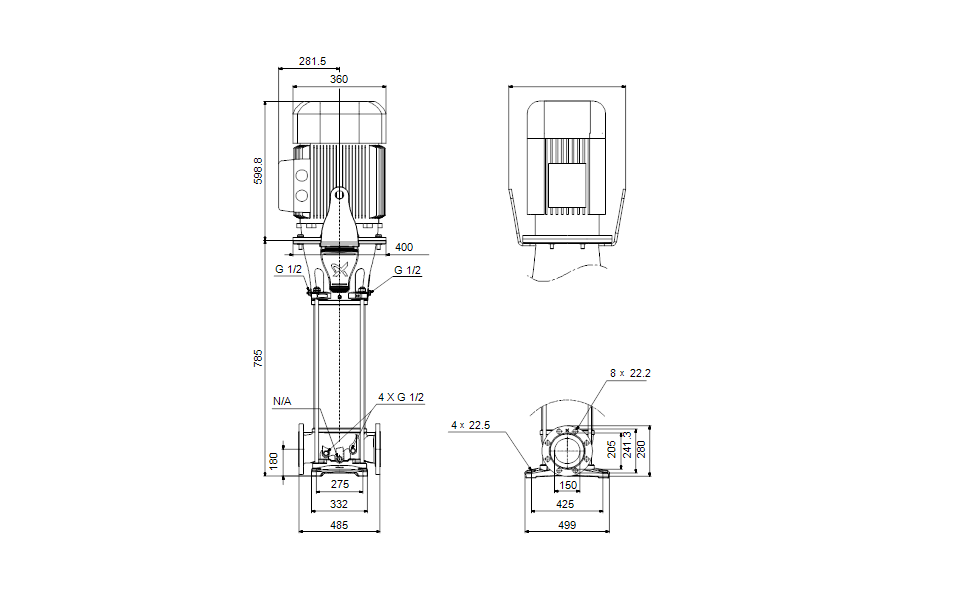

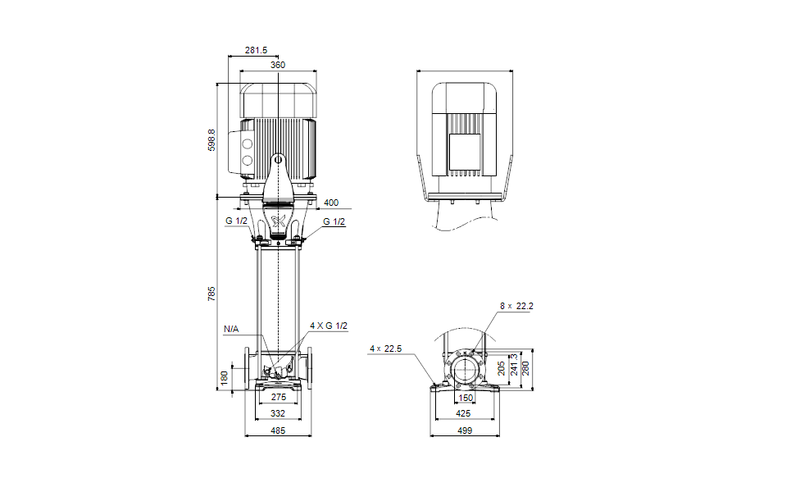

Dimensional Drawing

DWiring Diagram
