Grundfos 98776356 - CR 10-9 HK-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98776356

Price:
Sale price$14,027.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

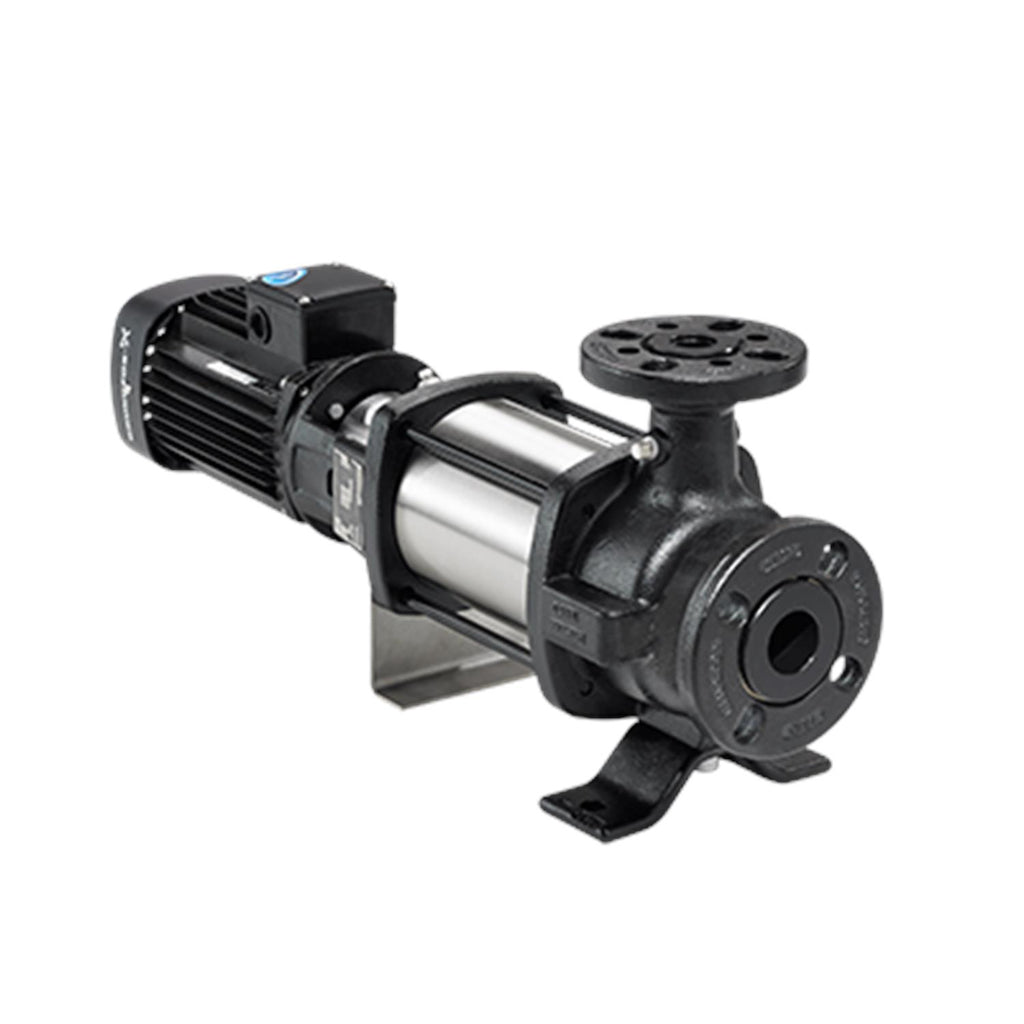

CR 10-9 HK-G22-A-E-HQQE The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via G22 ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712601219969
Approvals CURUS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 353.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
Net weight 251.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3482 rpm
Pump version HK
Pumped liquid Water
Rated current 19
Rated power - P2 5.5 kW
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 9
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Type of connection G22
Version HK

Motor Curves

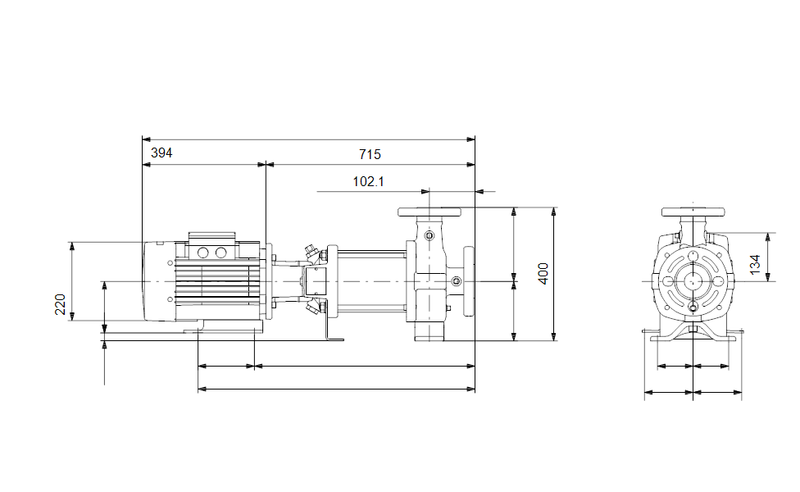

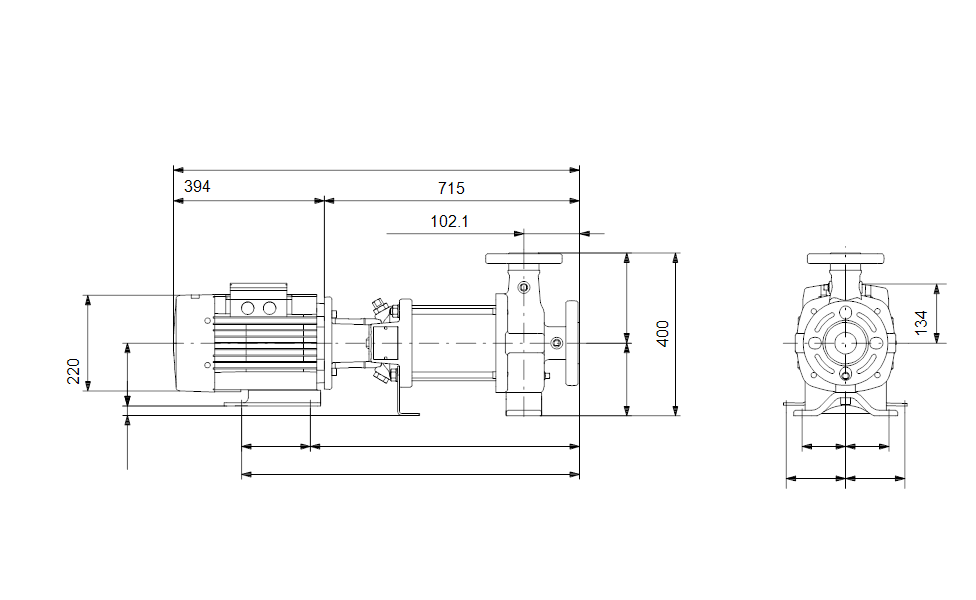

Dimensional Drawing

DWiring Diagram
