Grundfos 98362845 - CR 10-9 A-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98362845

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-9 A-GJ-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.

EAN 5711493694700
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 47.0 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 120 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 16 bar / 120 °C
Maximum head 33.2 m
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 40.0 kg
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 1744 rpm
Pump version A
Rated flow 6.1 m³/h
Rated head 26.1 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard NEMA
Type of connection ANSI / JIS
Version A

Motor Curves

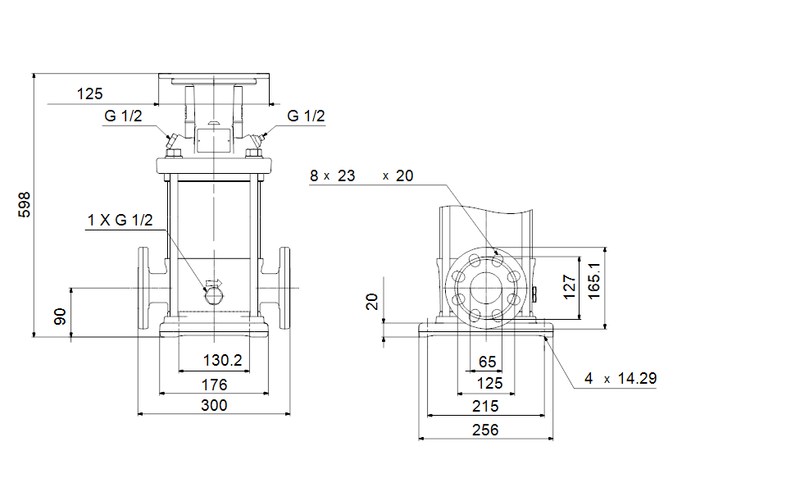

Dimensional Drawing
