Grundfos 98161319 - CR 10-8 A-A-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $3,339.84
GRUNDFOSSKU: 98161319

Price:
Sale price$3,618.16 Regular price$6,958.00
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-8 A-A-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5710629593399
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 135.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 268.1 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 87.7-85.4 %
Motor efficiency at 3/4 load 88.0-87.0 %
Motor efficiency at full load 1 87.1-87.1 %
Motor standard IEC
Motor type 100DA
Net weight 126.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 2902 rpm
Pump version A
Pumped liquid Water
Rated current 11.0/6.30 A
Rated flow 44 US gpm
Rated head 212.6 ft
Rated power - P2 3 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 8
Standard IEC
Starting current 840-920 %
Type 100DA
Type of connection Oval / Rp
Version A

Motor Curves

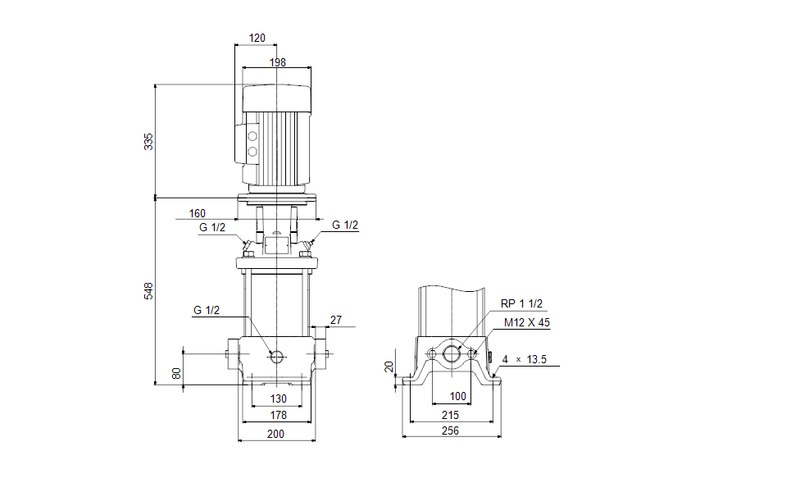

Dimensional Drawing

DWiring Diagram
