Grundfos 96527491 - CR 10-6 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96527491

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96527491 - CR 10-6 A-A-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid transfer where high pressure and inline mounting are required. It suits technicians and maintenance teams replacing service-special units.

Key features

  • Multistage centrifugal design for high-pressure delivery and smooth flow
  • Vertical, in-line configuration for compact footprint and easy installation
  • Service-special build ideal for repair, overhaul, or routine replacement parts

Applications

Typical uses include high-pressure boosting, process systems, industrial water transfer, boiler feed, and general inline pumping tasks where a vertical multistage pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96527491

EAN 5700397070710
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 75.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 200.8 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor standard IEC
Net weight 66.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated flow 44 US gpm
Rated head 158.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 6
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

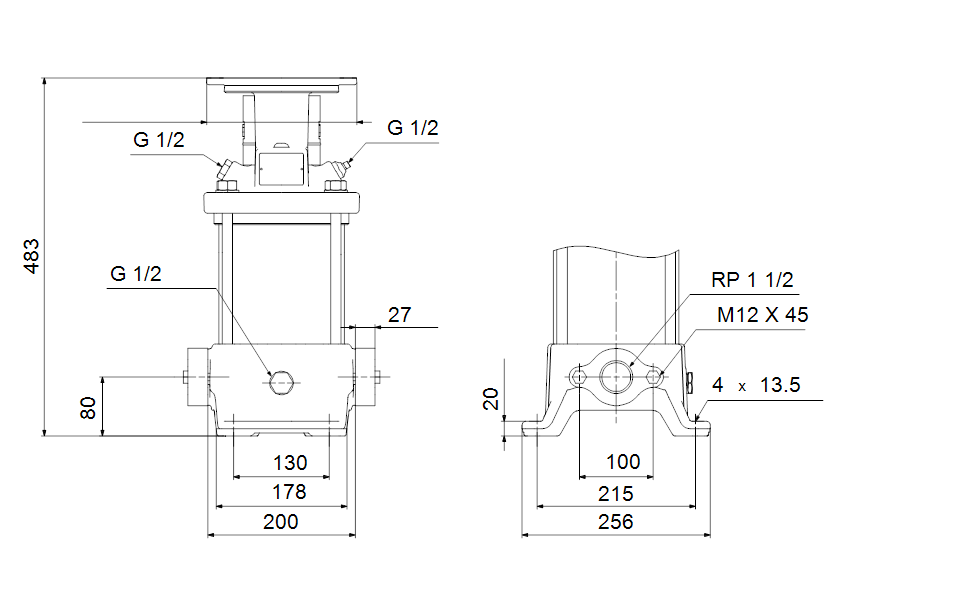

Dimensional Drawing
