Grundfos 92898976 - CR 10-5 B-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92898976

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92898976 - CR 10-5 B-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 10-5 B-GJ-A-E-HQQE model is perfect for applications requiring consistent performance under demanding conditions. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized as a Service Special unit, ensuring it meets the rigorous standards of quality and durability.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU that matches the 92898976. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

EAN 5715121246286
Actual impeller diameter 3.66 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 112.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 241.8 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 94.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version B
Rated flow 53.3 US gpm
Rated head 191.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type of connection ANSI / JIS
Version B

Motor Curves

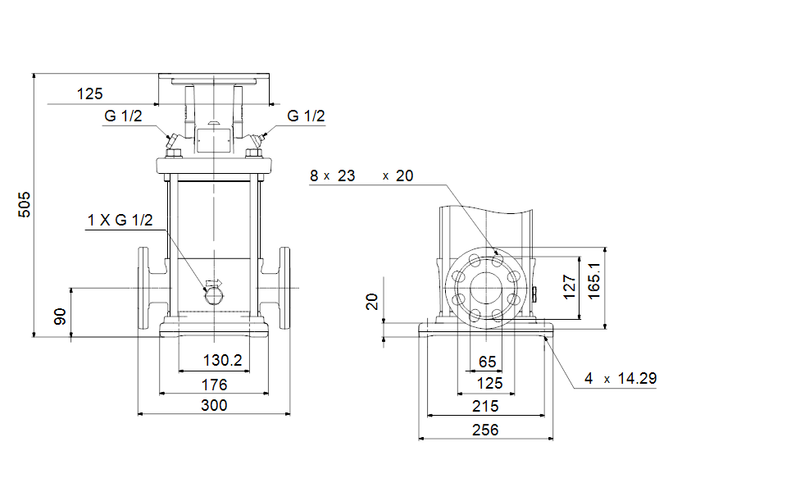

Dimensional Drawing
