Grundfos 96840056 - CR 10-4 B-GJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96840056

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-4 B-GJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.

EAN 5700311685112
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 92.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 48.23 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 75.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 1739 rpm
Pump version B
Rated flow 26.9 US gpm
Rated head 37.73 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type of connection ANSI / JIS
Version B

Motor Curves

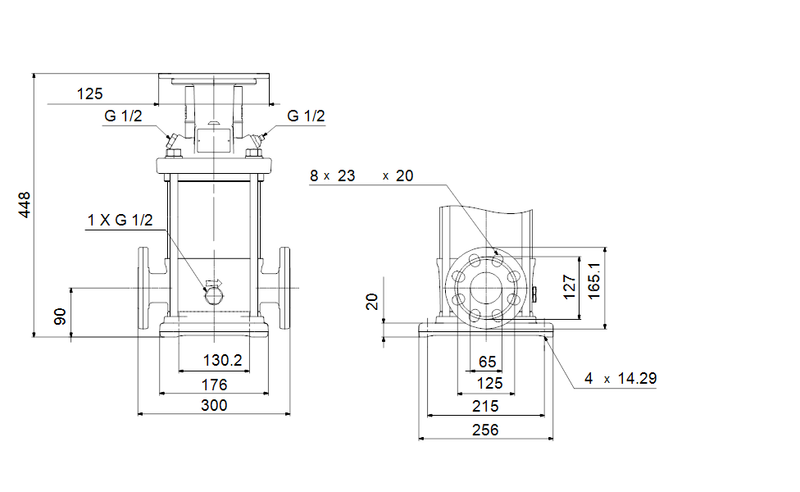

Dimensional Drawing
