Grundfos 96522822 - CR 10-3 A-BN-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96522822

Price:
Sale price$7,315.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

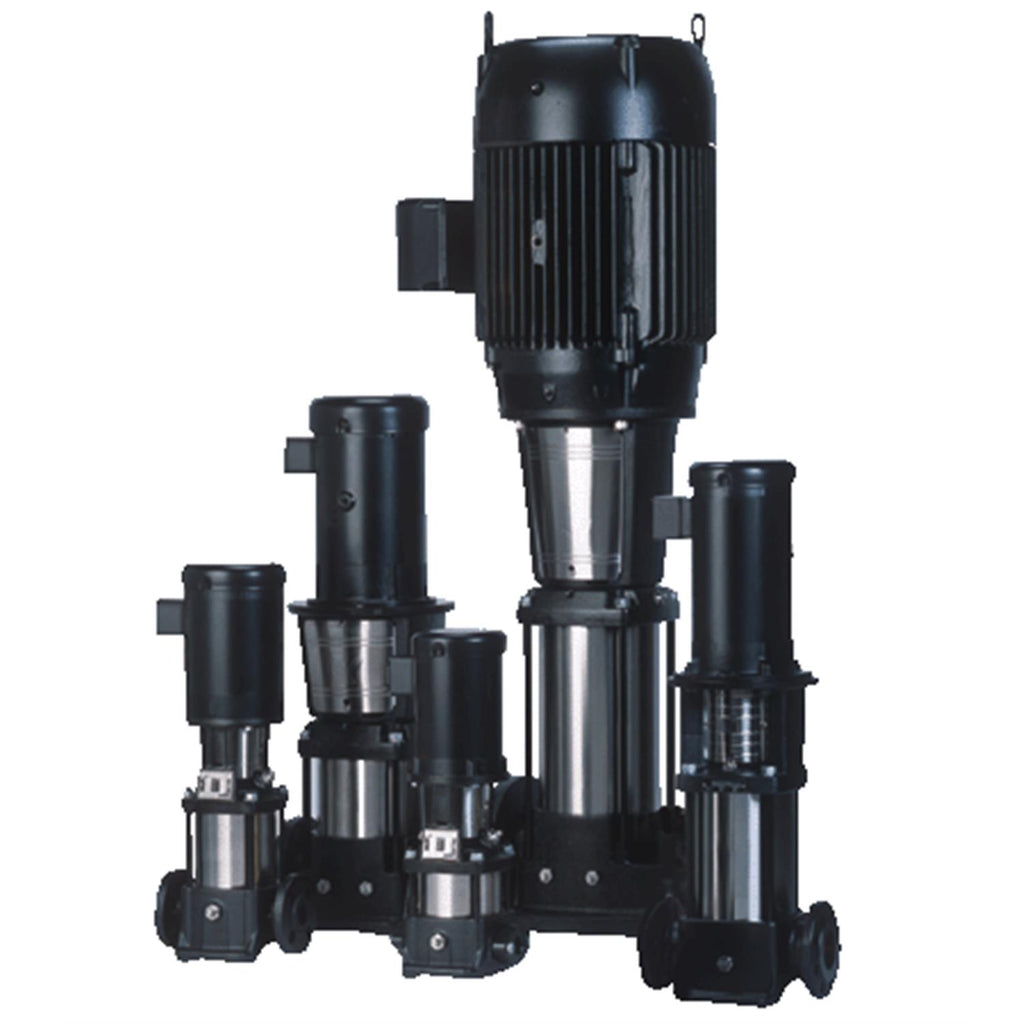

CR 10-3 A-BN-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR3HP115/208-230V1.0-Phase60 HzTEFCStainless steel

The Grundfos 96522822 (CR 10-3 A-BN-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 53.3US gpm at 111.6ft. Rated 115/208-230V, 1.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
3HP
Voltage
115/208-230V
Phase
1.0-Phase
Max Flow
53.3US gpm
Max Head
111.6ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 10-3 A-BN-A-E-HQQE
Series: CR
Model Code: CR 10-3 A-BN-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 96522822
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 3HP
Voltage 115/208-230V
Phase 1.0-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3457rpm
Full Load Current 29/16-14,5A
Motor Type BALDOR
Motor Efficiency 75%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 53.3US gpm
Nominal Head 111.6ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 2inch
Outlet Connection 2inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / NPT(F)
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/208-230V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 10-3 A-BN-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396894508
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code BN
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter NONE
Full load SF current 31
Gross weight 174.0 lb
IE efficiency 0.75
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 144.4 ft
Maximum operating pressure 10 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.75
Motor standard NEMA
Motor type BALDOR
Net weight 157.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 16
Product family CR 10
Pump 2.2 kW
Pump speed on which pump data are based 3457 rpm
Pump version A
Pumped liquid Water
Rated current 29/16-14
Rated flow 53.3 US gpm
Rated head 111.6 ft
Rated power - P2 2.2 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 3
Standard NEMA
Type BALDOR
Type of connection Oval / NPT(F)
Version A

Motor Curves

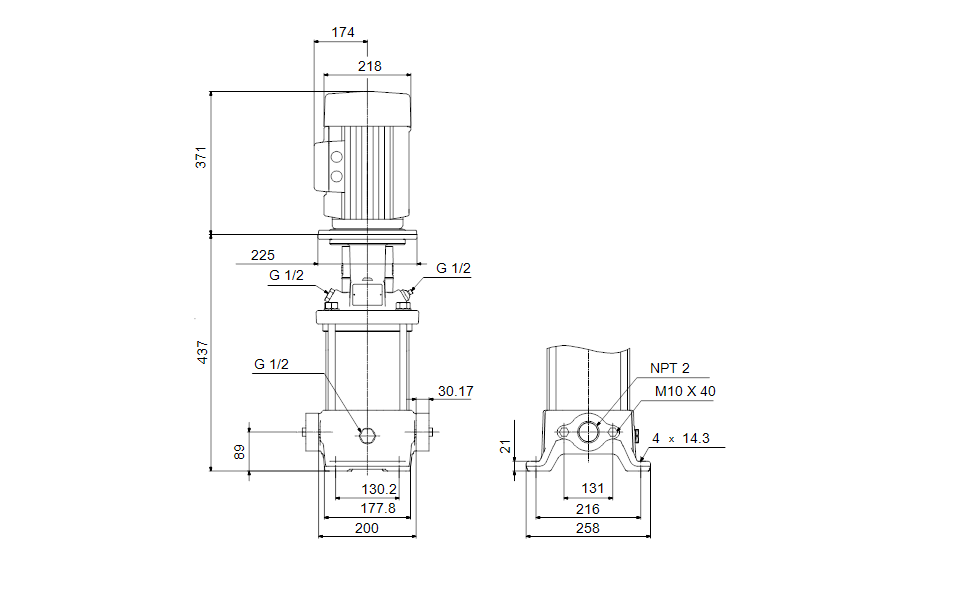

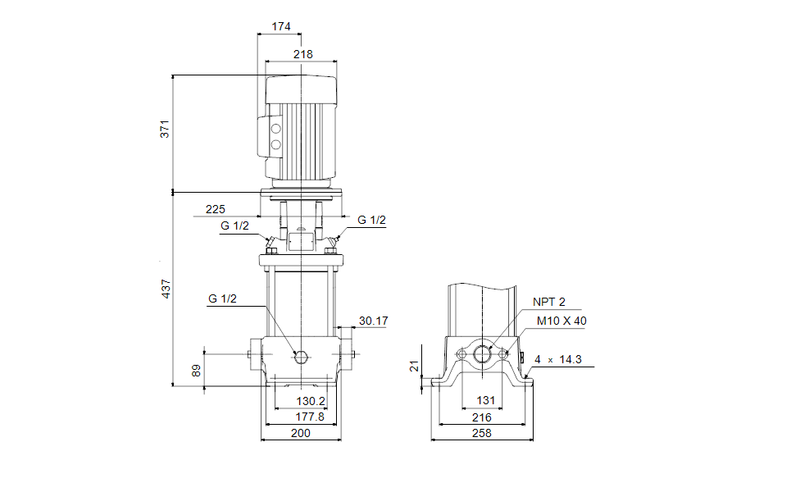

Dimensional Drawing

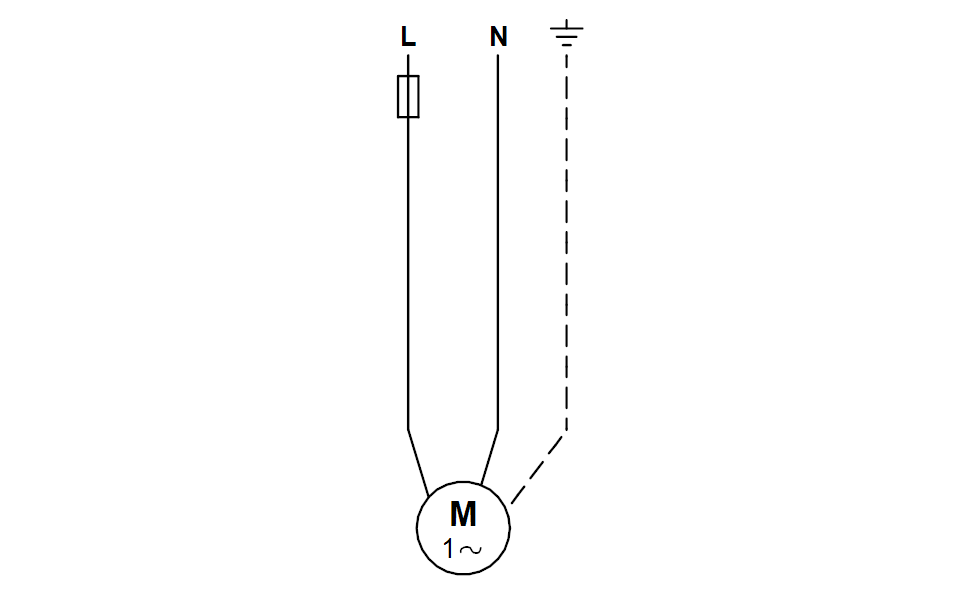

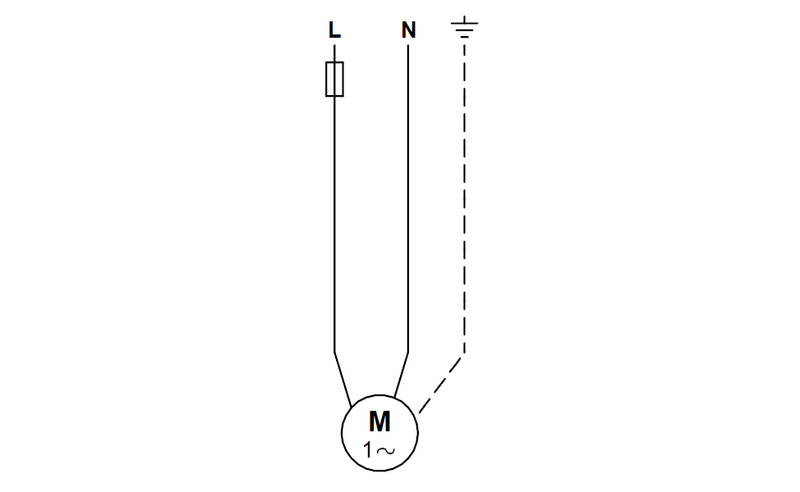

DWiring Diagram
