Grundfos 97658080 - CR 10-2 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,211.48
GRUNDFOSSKU: 97658080

Price:
Sale price$2,955.52 Regular price$5,167.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97658080 - CR 10-2 H-G05-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97658080 - CR 10-2 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CR series, known for its versatility and efficiency in handling various fluids. The CR 10-2 H-G05-A-E-HQQE is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 295.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 10-2 H-G05-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 93.51 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
Motor type 80BA
n rpm F
Net weight 132.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 1.5 HP
Phase 3
Power (P2) required by pump 1.5 HP
Power factor 1 0.84-0.75
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 HP
Pump version H
Rated current 4,70-4,60/2,30 A
Rated flow 52.8 US gpm
Rated head 69.56 ft
Rated power - P2 1.5 HP
Rated speed 3450-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 10-2 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 720-800 %
Type 80BA
Version H

Motor Curves

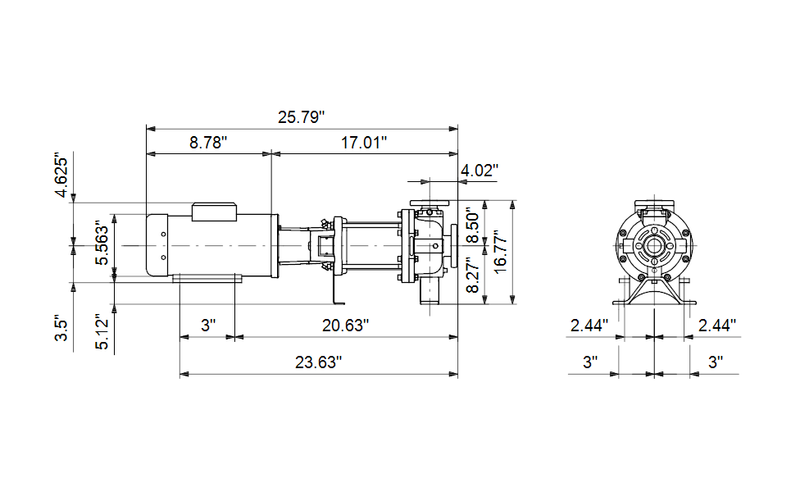

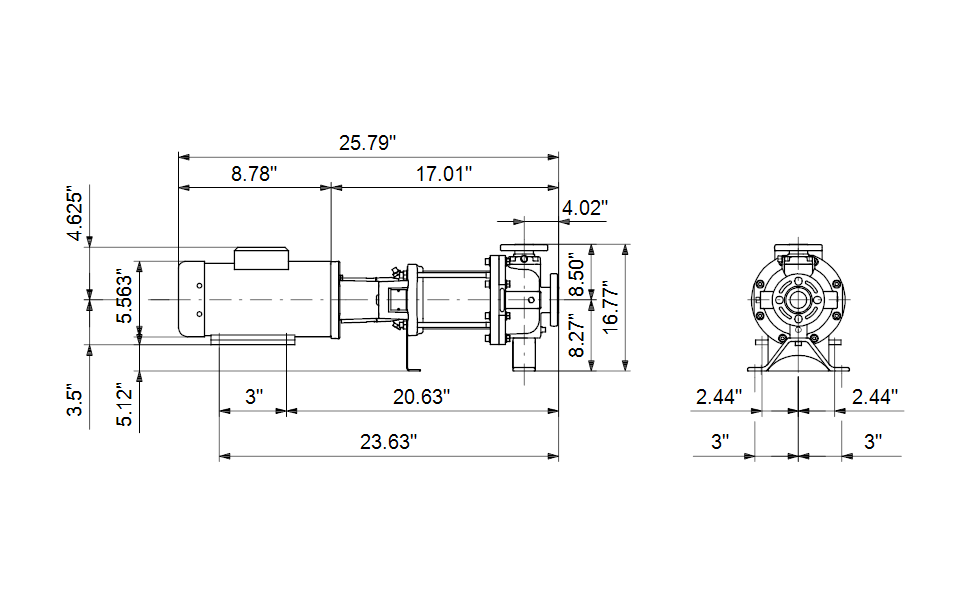

Dimensional Drawing

DWiring Diagram
