Grundfos 98957567 - CR 10-18 A-FJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98957567

Price:
Sale price$16,405.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98957567 CR 10-18 A-FJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid transfer. It fits inline and high-pressure systems where compact vertical configuration and staged pumping are needed.

Key features

  • Multistage vertical design for higher pressure in a compact footprint
  • Service special designation for repair and replacement support
  • Suitable for inline centrifugal installations offering reliable flow control

Applications

Common uses include booster systems, high-pressure water supply, HVAC, industrial process circulation, and other applications requiring staged pressure increases. Keep claims general and verify system requirements before ordering.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98957567

EAN 5712604237977
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 289.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 91
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 607 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 90.8-90.4 %
Motor efficiency at 3/4 load 90.8-90.9 %
Motor efficiency at full load 1 90.1-90.4 %
Motor standard IEC
Motor type 132EA
Net weight 240.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.88-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 14
Rated flow 44 US gpm
Rated head 490.2 ft
Rated power - P2 7.5 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 380-415D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 18
Standard IEC
Starting current 780-910 %
Type 132EA
Type of connection DIN / JIS
Version A

Motor Curves

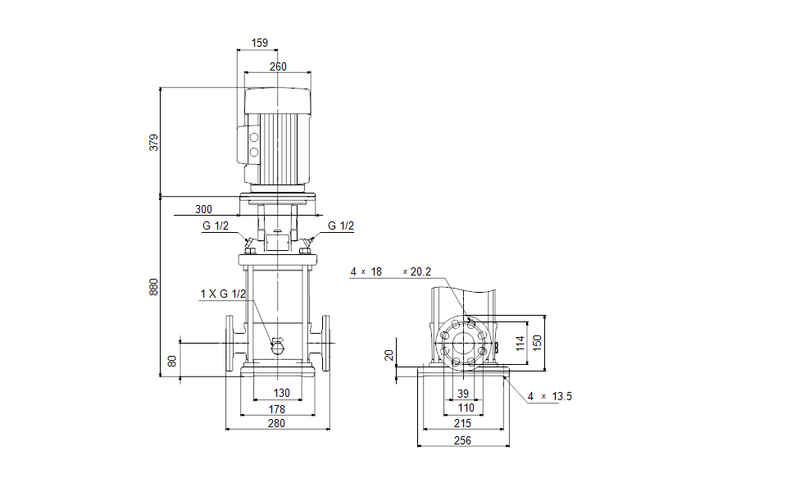

Dimensional Drawing

DWiring Diagram
