Grundfos 97569959 - CR 10-17 H | Horizontal | End Suction

GrundfosSKU: 97569959

Price:
Sale price$10,794.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 10-17 H · Vertical Multistage Centrifugal Pump
CR60 HzStainless steel

The Grundfos 97569959 (CR 10-17 H) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 52.8US gpm at 599.8ft.

Max Flow
52.8US gpm
Max Head
599.8ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 10-17 H
Series: CR
Model Code: CR 10-17 H
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQV
Flange Rating: Class 300
Technical Specifications
Model Number 97569959
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Frequency 60 Hz
Pump Speed 3444rpm
Nominal Flow 52.8US gpm
Nominal Head 599.8ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Inlet Connection 2.0inch
Outlet Connection 2.0inch
Pipe Pressure Rating Class 300
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQV
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 10-17 H
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700318727945
Applications Pressure boosting, Industrial applications
Code for rubber V
Code for shaft seal HQQV
Connect code G22
Connection Class 300
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 656.0 lb
Impeller Stainless steel
Impellers 17
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 25 bar
Model A
Motor 254TC
Net weight 389.0 lb
Pressure rating for connection Class 300
Product family CR-H
Pump speed on which pump data are based 3444 rpm
Pump version H
Pumped liquid Water
Rated flow 52.8 US gpm
Rated head 599.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Sales region USA
Selected liquid temperature 68 °F
Size of inlet connection 2.0 inch
Size of outlet connection 2.0 inch
Stages 18
Version H

Motor Curves

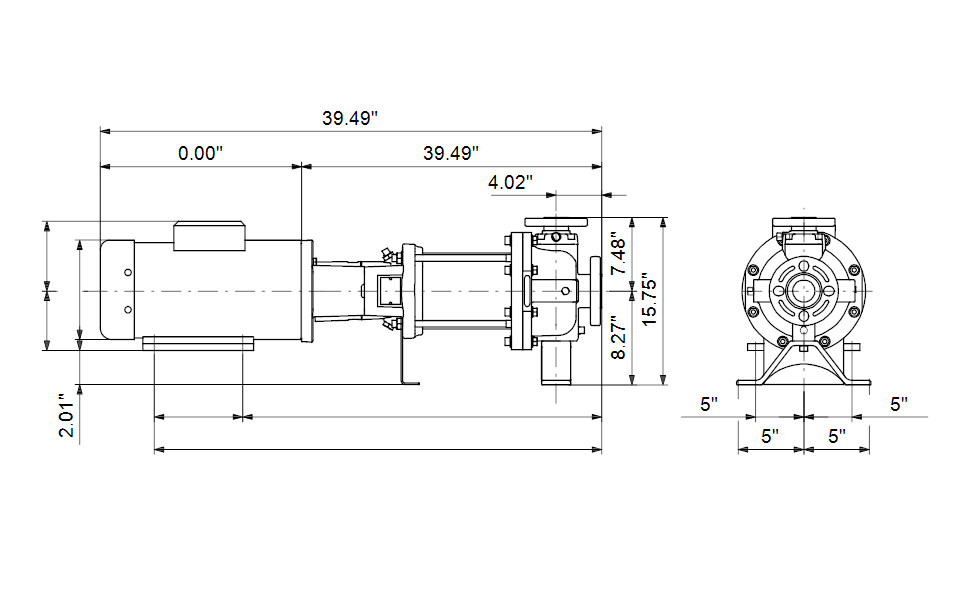

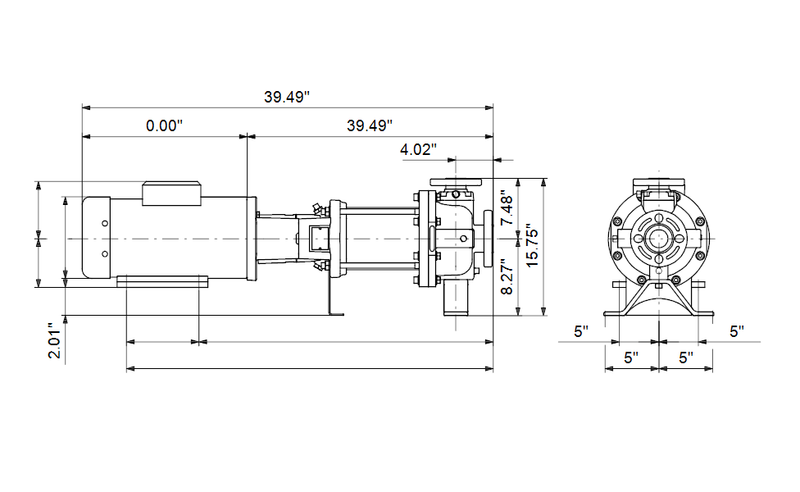

Dimensional Drawing
