Grundfos 97569374 - CR 10-17 H | Horizontal | End Suction

Save $4,252.32
GRUNDFOSSKU: 97569374

Price:
Sale price$4,606.68 Regular price$8,859.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-17 H | CR-H pumps are horizontal end suction pumps typically mounted on baseplates. The end suction design enables the pump to be installed horizontally in traditional, end suction design piping where the pump has an axial suction port and a radial center line discharge port. This design allows “back pull-out” capability. This means the pump usually can be easily serviced without removing the volute from the pipe system. CR-H pumps can be selected that meet ASME B73. 1 dimensional standards for suction and discharge piping as well as many of the baseplate dimensional standards. CR-H pumps do not fully comply with the ASME B73. 1 specification.

EAN 5700318701747
Applications Pressure boosting, Industrial applications
Approvals on nameplate ANSI/NSF61
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection Class 300
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 749.0 lb
Impeller Stainless steel
Impellers 17
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 25 bar
Model A
Motor 254TC
Net weight 389.0 lb
Pressure rating for connection Class 300
Product family CR-H
Pump speed on which pump data are based 3444 rpm
Pump version H
Pumped liquid Water
Rated flow 52.8 US gpm
Rated head 599.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region USA
Selected liquid temperature 68 °F
Size of inlet connection 2.0 inch
Size of outlet connection 1.0 inch
Stages 18
Version H

Motor Curves

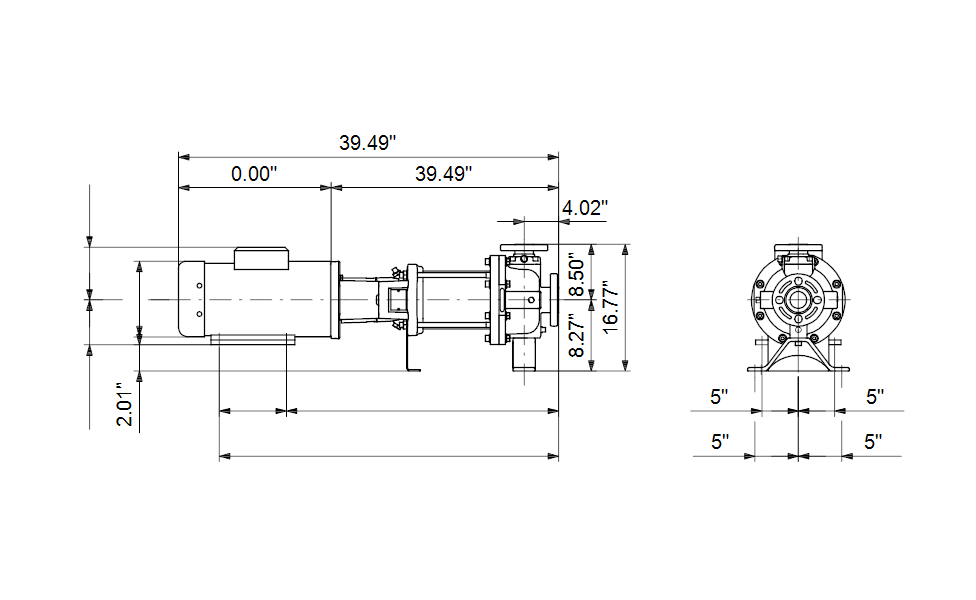

Dimensional Drawing
