Grundfos 98161328 - CR 10-16 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161328 - CR 10-16 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

This model is part of the CR series, known for its versatility and durability. It is categorized under Service Special and is suitable for various configurations, including CRN-CRT and CR FPV. Please note that this model does not include the 95 through 255 series.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629593481
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 256.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 534.8 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 207.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 19.0/11.0 A
Rated flow 44 US gpm
Rated head 424.6 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 16
Standard IEC
Starting current 1080-1180 %
Type 132DA
Type of connection Oval / Rp
Version A

Motor Curves

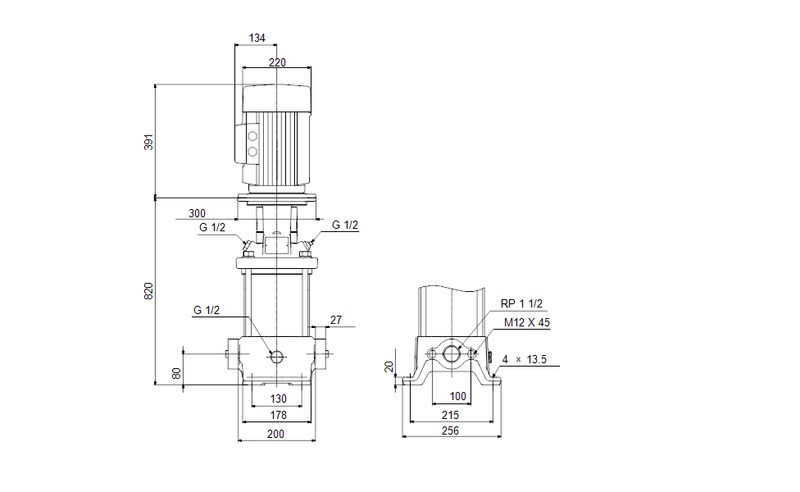

Dimensional Drawing

DWiring Diagram
