Grundfos 97569958 - CR 10-16 H-G22-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,684.65
GRUNDFOSSKU: 97569958

Price:
Sale price$4,924.35 Regular price$8,609.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97569958 - CR 10-16 H-G22-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. The CR series is known for its versatility and can be utilized in various configurations, including horizontal and vertical installations. With its multi-stage design, the CR 10-16 H-G22-A-V-HQQV delivers high pressure and flow rates, making it suitable for both residential and commercial applications.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G22
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 293.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 752 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 172.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 556.5 ft
Rubber V
Sales region USA
Shaft Product name:CR 10-16 H-G22-A-V-HQQV
Shaft seal HQQV
Stages 16
Standard NEMA
Version H

Motor Curves

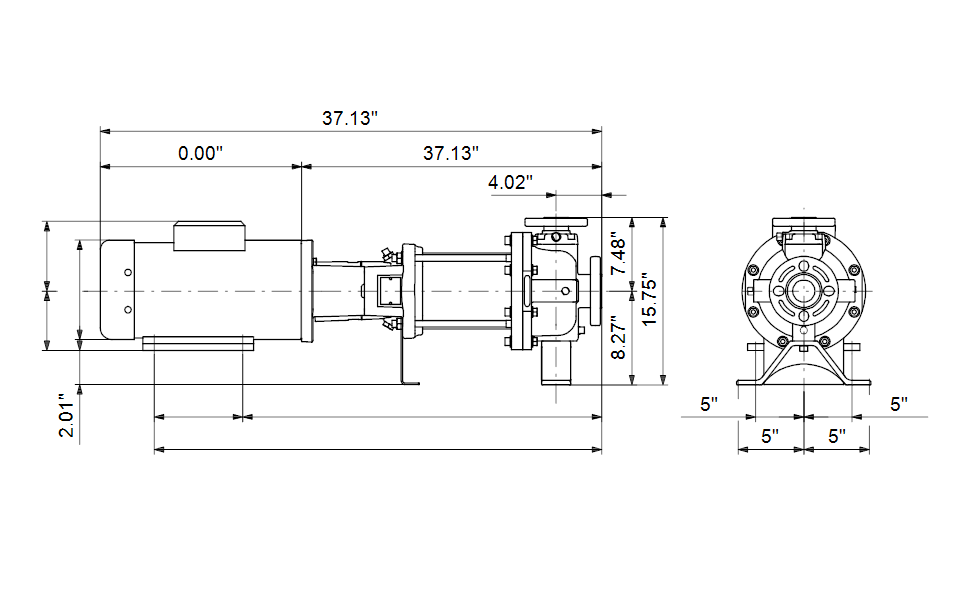

Dimensional Drawing
