Grundfos 96533604 - CR 10-16 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96533604

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96533604 - CR 10-16 A-A-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid handling. It suits users needing compact, high-pressure in-line pump solutions for process, boiler feed, and water transfer systems.

Key features

  • Vertical multistage centrifugal design for high-pressure, space-saving installations
  • Service-special configuration for maintenance and repair workflows
  • In-line mounting supports efficient system integration and consistent flow delivery

Applications

Common uses include boiler feed, water supply, pressure boosting, industrial process circulation, and other high-pressure inline pumping needs where a compact multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96533604

EAN 5700397463949
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF265
Frequency converter NONE
Gross weight 161.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum head 534.8 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor standard IEC
Net weight 112.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated flow 44 US gpm
Rated head 424.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 16
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

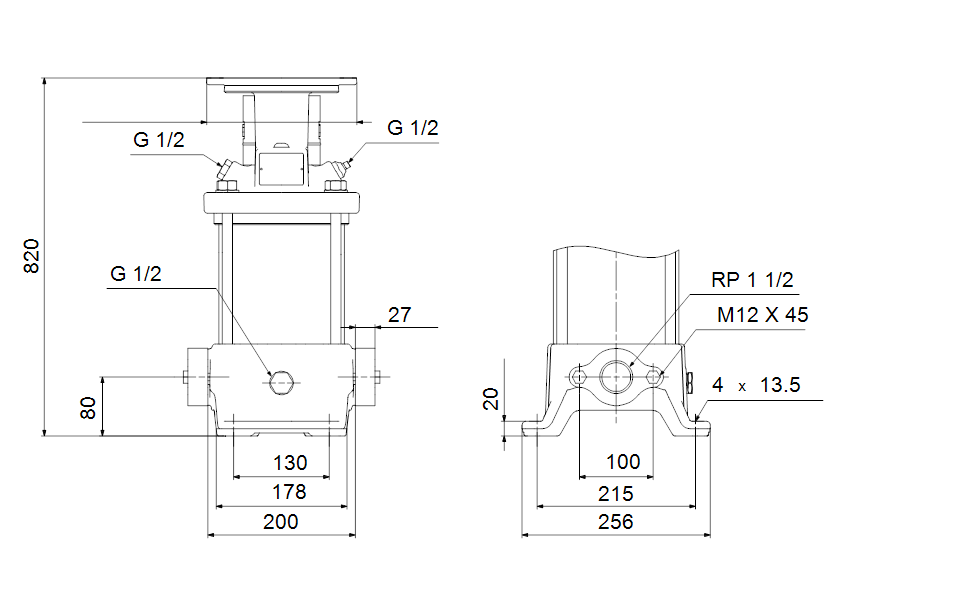

Dimensional Drawing
