Grundfos 92653119 - CR 10-16 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92653119

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92653119 - CR 10-16 A-GJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92653119 - CR 10-16 A-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CR 10-16 A-GJ-A-E-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos CR series, known for its versatility and efficiency in various applications.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715117634127
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 126.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 193.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 106.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 1730 rpm
Pump version A
Rated flow 26.9 US gpm
Rated head 151.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard NEMA
Type of connection ANSI / JIS
Version A

Motor Curves

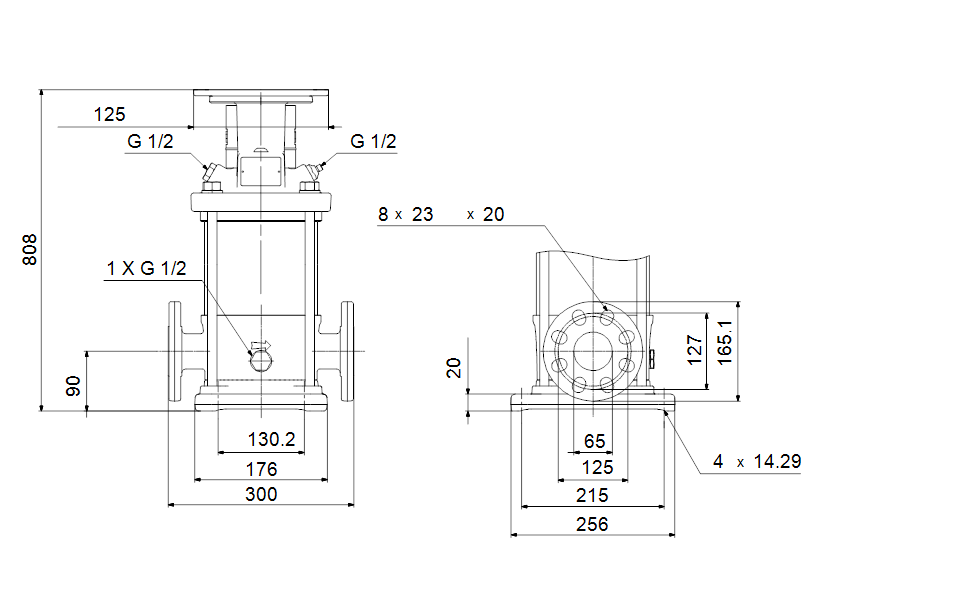

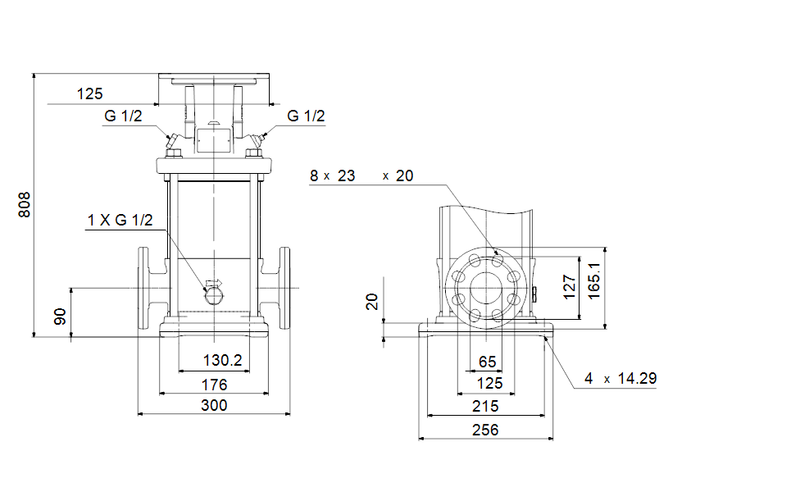

Dimensional Drawing
