Grundfos 92865046 - CR 10-14 HK-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92865046

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92865046 - CR 10-14 HK-G22-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92865046 - CR 10-14 HK-G22-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model offers exceptional efficiency and reliability, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the CR 10-14 HK-G22-A-E-HQQE is capable of handling high-pressure applications with ease. This pump is perfect for tasks that require consistent flow rates and durability, ensuring optimal performance in your operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120723160
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 481.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 631.6 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type WEG
Net weight 359.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3450 rpm
Pump version HK
Pumped liquid Water
Rated current 34.8/17.4 A
Rated flow 47.1 US gpm
Rated head 524.3 ft
Rated power - P2 11 kW
Rated speed 3525 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 14
Standard NEMA
Starting current 6.8
Type WEG
Type of connection G22
Version HK

Motor Curves

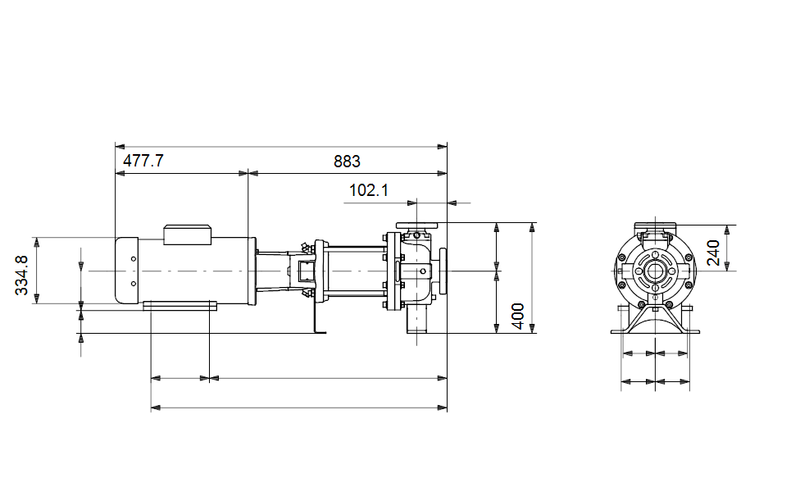

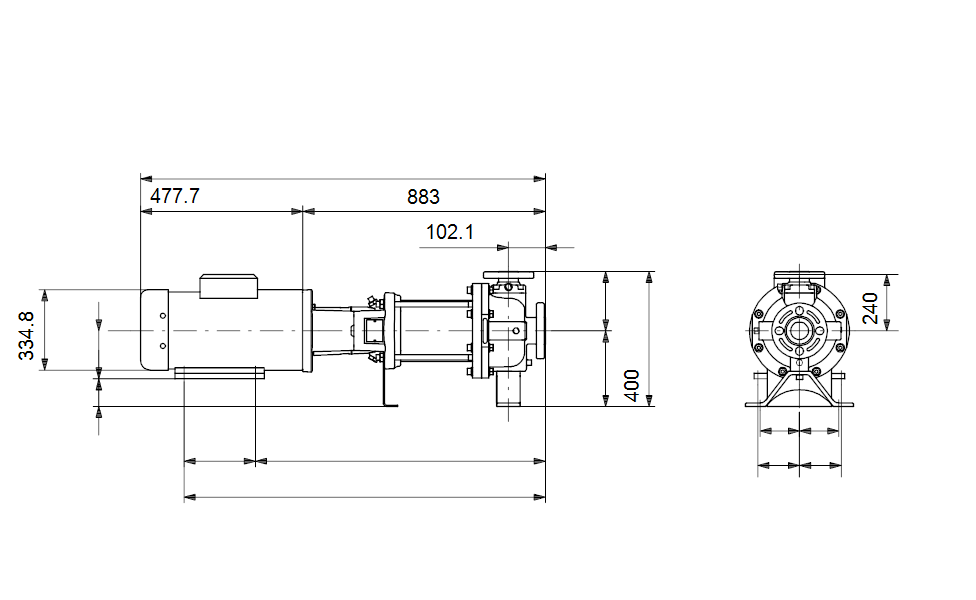

Dimensional Drawing

DWiring Diagram
