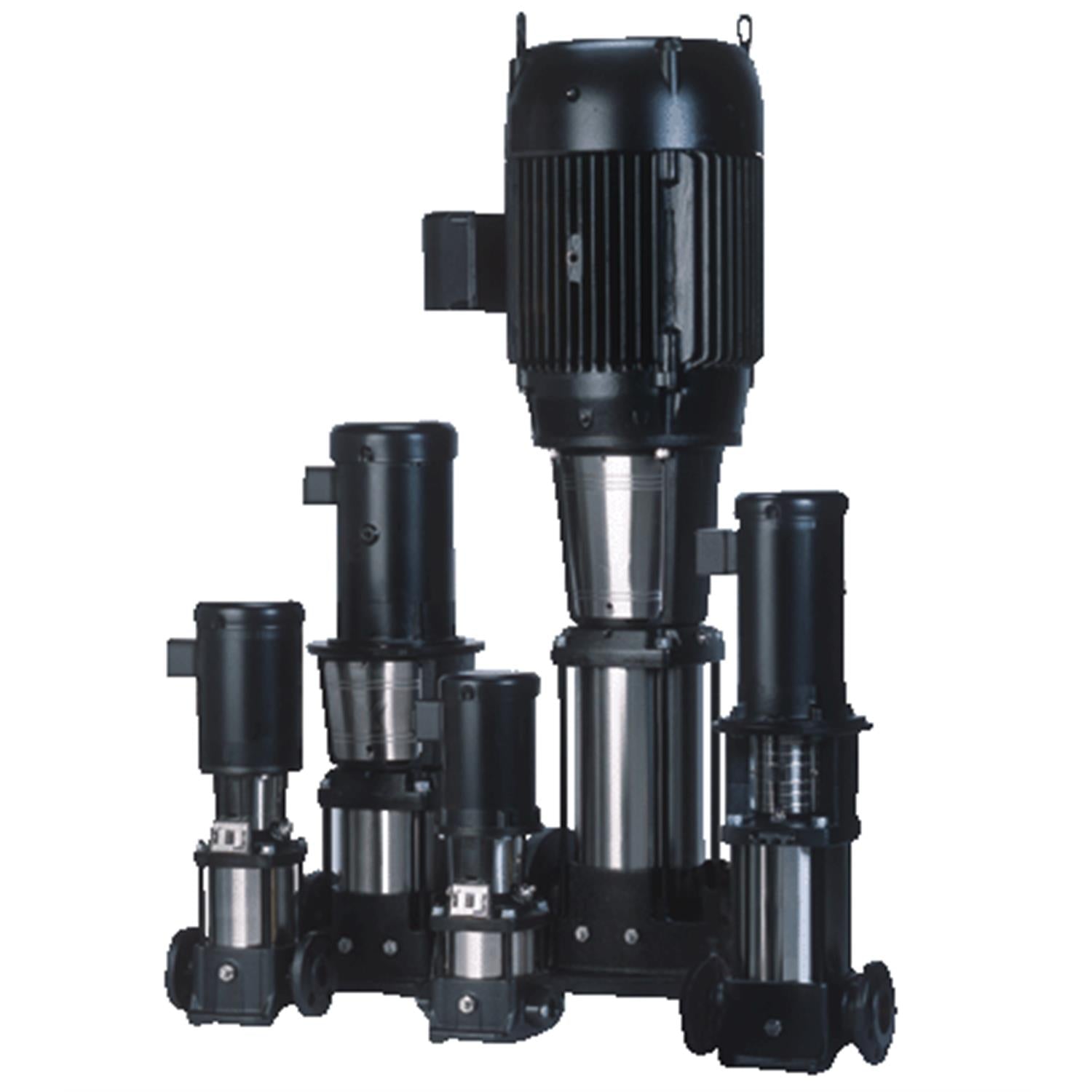

Grundfos 99968297 - CR 10-12 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,258.60
GRUNDFOSSKU: 99968297

Price:
Sale price$5,691.40 Regular price$9,950.00
Typically In Stock – standard inventory item, typically available in 1 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99968297 - CR 10-12 K-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure systems.

This model falls under the CR series, known for its low NPSH capabilities, ensuring optimal performance even in challenging conditions. The CR 10-12 K-GJ-A-E-HQQE is perfect for applications requiring consistent flow rates and pressure, making it suitable for water supply, heating, and cooling systems.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of centrifugal pumps, including single and multi-stage options, and discover why Grundfos is a trusted name in the industry.

EAN 5715114888943
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection ANSI / JIS
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.902
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 26.5/13.2 A
Gross weight 306.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 90,2%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 12
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 547.9 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.902
Motor efficiency at full load 1 0.902
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3530rpm
Net weight 287.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 3
Power (P2) required by pump 10 HP
Power factor 1 0.91
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CR 10
Pump 10 HP
Pump housing Cast iron
Pump inlet DN 50
Pump outlet DN 50
Pump version K
Pumped liquid Water
Rated current 23.0/11.5 A
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 436.7 ft
Rated head 2 436.7 ft
Rated power - P2 10 HP
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time 1 Available on 10/6/2023 Plant: Fresno Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Starting current 7.5
Type WEG
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
