Grundfos 98161324 - CR 10-12 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,100.16
GRUNDFOSSKU: 98161324

Price:
Sale price$4,441.84 Regular price$8,542.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161324 - CR 10-12 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

This model is part of the CR series, known for its versatility and robust construction. It is suitable for various service special applications and is categorized under centrifugal pumps, including both single and multi-stage options. The CR 10-12 A-A-A-E-HQQE is specifically designed to handle demanding tasks while ensuring optimal performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710629593443
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 170.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 400.3 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 85.2-88.1 %
Motor efficiency at 3/4 load 88.6-88.2 %
Motor efficiency at full load 1 88.1-88.1 %
Motor standard IEC
Motor type 112CA
Net weight 161.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.87-0.87
Pressure rating for connection PN 16
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated current 13.6/7.90 A
Rated flow 44 US gpm
Rated head 317.3 ft
Rated power - P2 4 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 12
Standard IEC
Starting current 1000-1110 %
Type 112CA
Type of connection Oval / Rp
Version A

Motor Curves

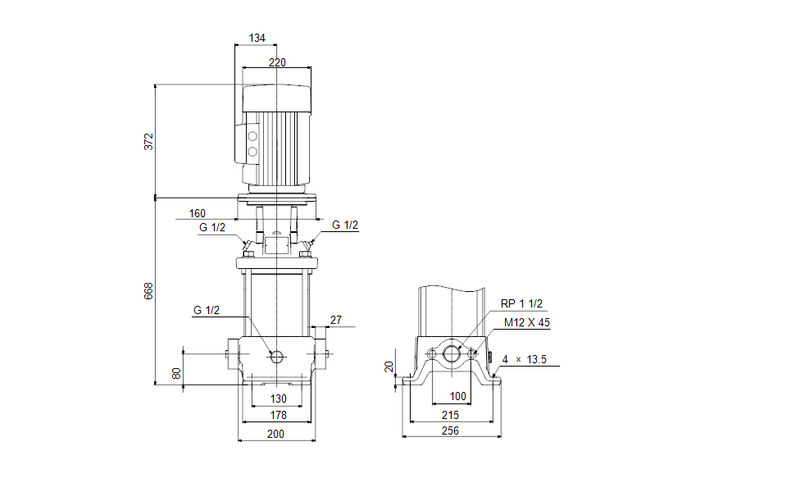

Dimensional Drawing

DWiring Diagram
