Grundfos 96937466 - CR 1-6 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96937466

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96937466 is a vertical, multistage centrifugal pump intended for in-line, high-pressure service; it's used by maintenance and service technicians for industrial and commercial fluid-handling tasks.

Key features

  • Suitable for general industrial applications and service replacements
  • Vertical, multi-stage centrifugal design for high-pressure, in-line installations
  • Provides reliable pressure boosting and efficient multi-stage performance

Applications

Common uses include building services, process water boosting, boiler feed, circulation, and other high-pressure in-line pumping situations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96937466

EAN 5700314111502
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 36.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum head 177.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor standard IEC
Net weight 30.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 135.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 6
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

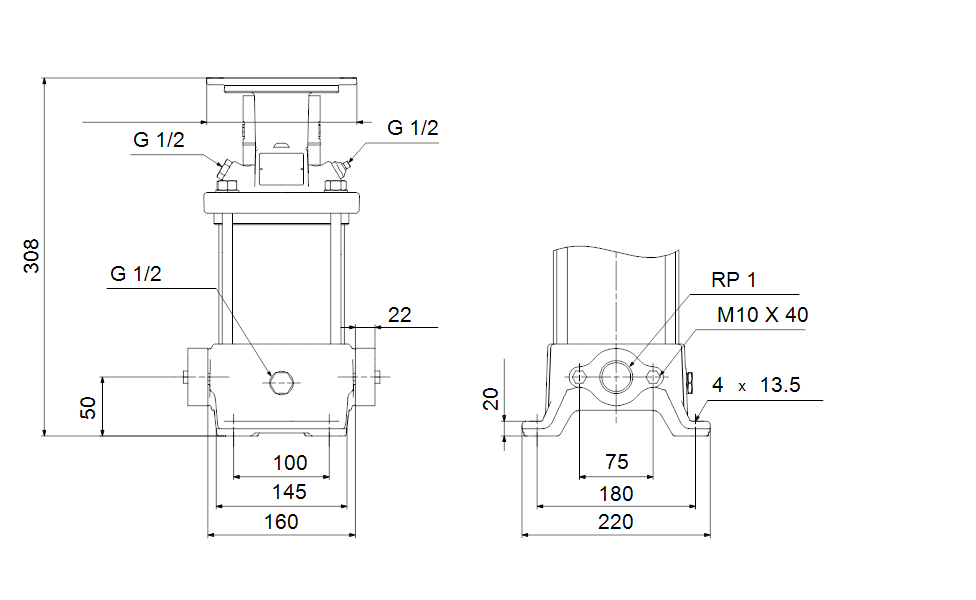

Dimensional Drawing
