Grundfos 99235867 - CR 1-3 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99235867

Price:
Sale price$2,719.44
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99235867 - CR 1-3 A-A-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial inline high-pressure systems, suitable for technicians and facility maintenance teams.

Key features

  • Manufactured for industrial service with robust multistage construction
  • Vertical inline centrifugal design for space-saving installation and high-pressure operation
  • Provides reliable pressure boosting and steady flow for process and utility applications

Applications

Typical uses include boiler feed, pressure boosting, water transfer, HVAC systems, and general industrial process services where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99235867

EAN 5712609225818
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT85
Frequency converter NONE
Gross weight 46.6 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 90.23 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 77.5-75.0 %
Motor efficiency at 3/4 load 80.0-79.0 %
Motor efficiency at full load 1 73.4-73.4 %
Motor standard IEC
Motor type 71AB
Net weight 40.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.85-0.76
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated current 1
Rated flow 9.69 US gpm
Rated head 71.85 ft
Rated power - P2 0.37 kW
Rated speed 3410-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 3
Standard IEC
Starting current 550-650 %
Type 71AB
Type of connection Oval / Rp
Version A

Motor Curves

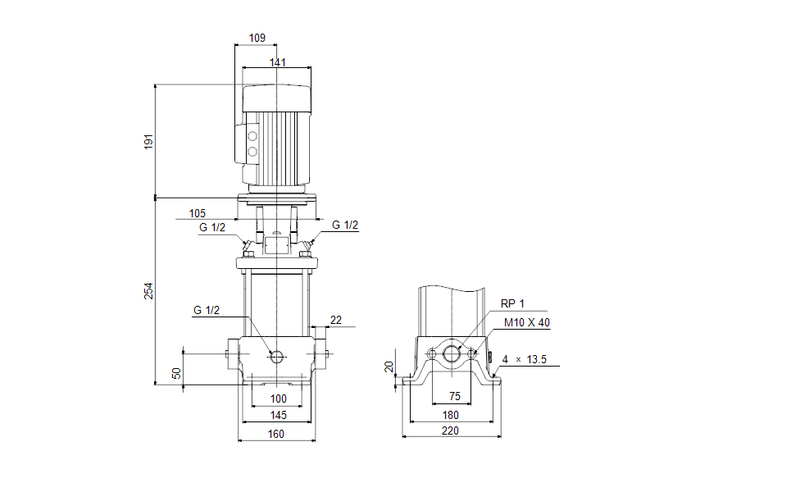

Dimensional Drawing

DWiring Diagram
