Grundfos 98160524 - CR 1-17 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,114.40
GRUNDFOSSKU: 98160524

Price:
Sale price$2,290.60 Regular price$4,405.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160524 - CR 1-17 A-A-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, suitable for demanding environments. The CR series is known for its versatility, and the CR 1-17 A-A-A-V-HQQV is no exception, offering exceptional performance in both single and multi-stage configurations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710629585929
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 72.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 345.8 ft
Maximum operating pressure 16 bar
Model A
Motor FT100
Motor standard IEC
Net weight 63.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 2853 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 262.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 17
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

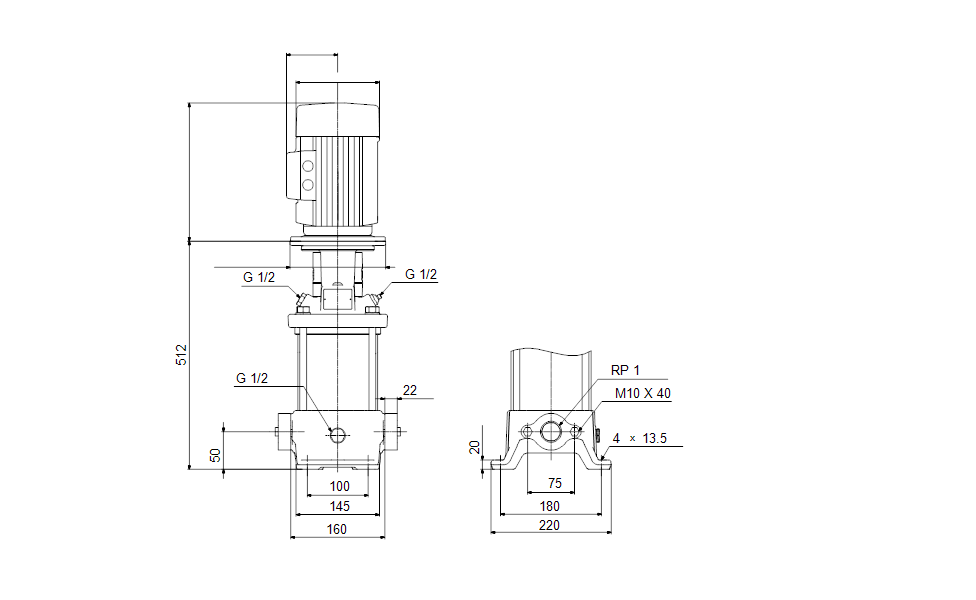

Dimensional Drawing
