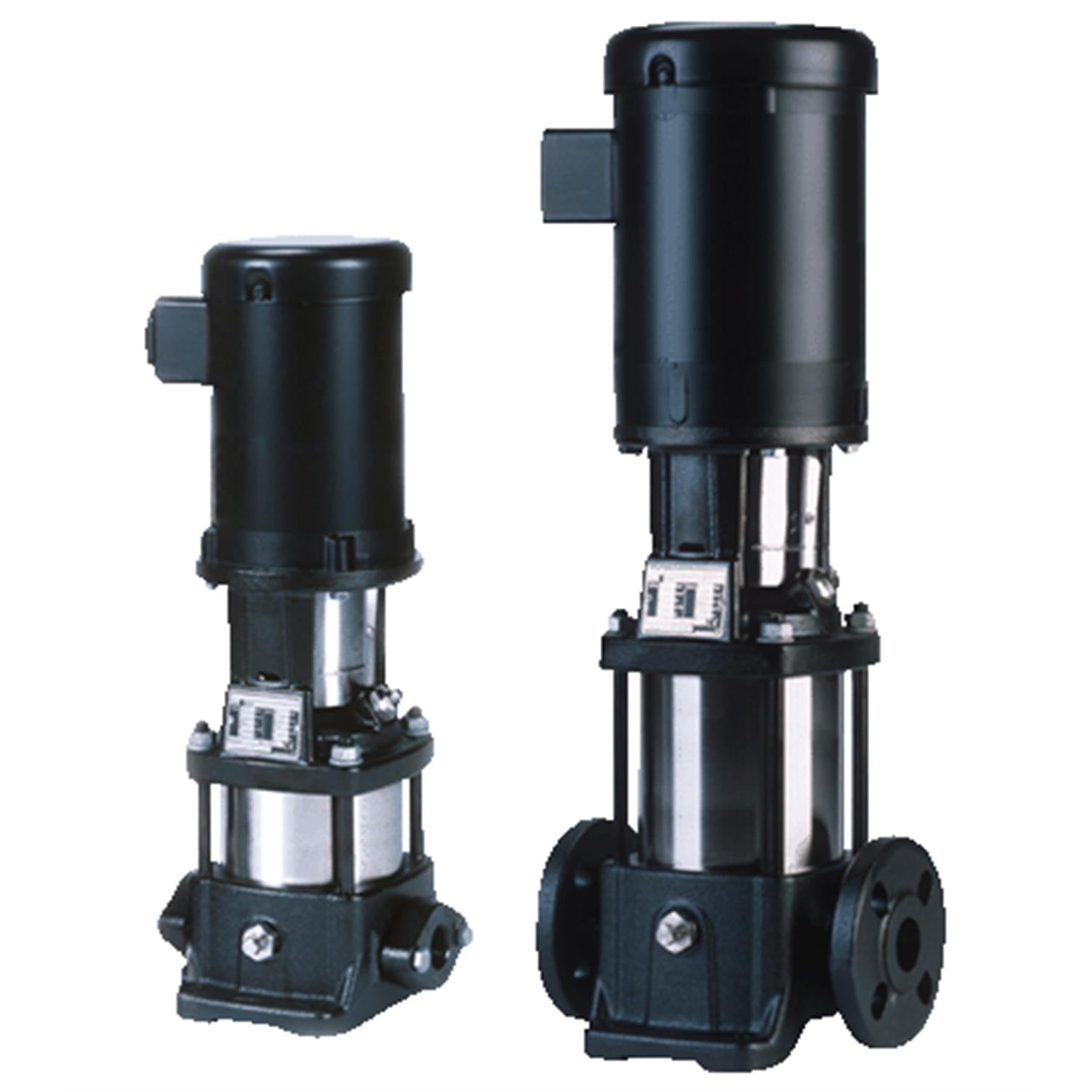

Image shown may not be actual product
Grundfos 96082102 - CR 1-13 A-FGJ-A-E-HQQE
Grundfos 96082102 - CR 1-13 A-FGJ-A-E-HQQE
Grundfos 96082102 - CR 1-13 A-FGJ-A-E-HQQE
Grundfos 96082102 - CR 1-13 A-FGJ-A-E-HQQE

Grundfos 96082102 - CR 1-13 A-FGJ-A-E-HQQE

Save $1,260.00
GRUNDFOSSKU: 96082102
Price:
$1,365.00 $2,625.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CR 1-13 A-FGJ-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700395168402
Applications Industrial applications
Material Pricing Group 30
Code for rubber E
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Size of inlet connection DN 25/32
Selected liquid temperature 68 °F
Type of connection DIN / ANSI / JIS
Bearing 1 SIC
Pressure rating PN 25
Flange size for motor 56C
Pumped liquid Water
Size of outlet connection DN 25/32
Pump outlet DN 25/32
Pump inlet DN 25/32
Connect code FGJ
Liquid temperature range -4 .. 248 °F
Net weight 49.1 lb
Gross weight 63.6 lb
Power (P2) required by pump 1.5 HP
Pressure rating for connection PN 25
Frequency converter NONE
Stages 13
Approvals CE
Rated flow 9.69 US gpm
Model A
Version A
Motor 56C
Rubber E
Maximum head 380.3 ft
Approvals for drinking water NSF/ANSI 61
Motor standard NEMA
Rated head 283.8 ft
Curve tolerance ISO9906:2012 3B
Impellers 13
Connection DIN / ANSI / JIS
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Cast iron
Number of reduced-diameter impellers 0
Flange rating inlet 250 lb
Pump 1.5 HP
Low NPSH N
Standard NEMA
Pump version A
