Grundfos 98160518 - CR 1-12 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,614.72
GRUNDFOSSKU: 98160518

Price:
Sale price$1,749.28 Regular price$3,364.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160518 - CR 1-12 A-A-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model is part of the CR series, known for its versatility and high-pressure capabilities. It is ideal for applications requiring consistent flow and pressure, making it suitable for water supply, irrigation, and various industrial processes. The CR 1-12 A-A-A-V-HQQV features a robust design that ensures longevity and minimal maintenance.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of centrifugal pumps, including single and multi-stage options, and discover why Grundfos is a trusted name in the industry.

EAN 5710629585868
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 60.4 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 245.1 ft
Maximum operating pressure 16 bar
Model A
Motor FT100
Motor standard IEC
Net weight 54.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 2864 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 187.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 12
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

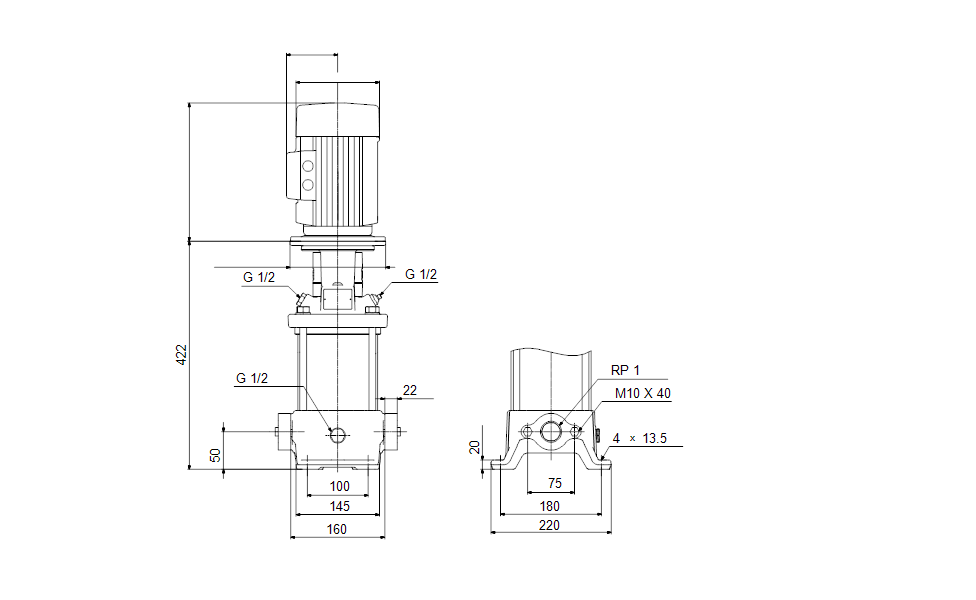

Dimensional Drawing
