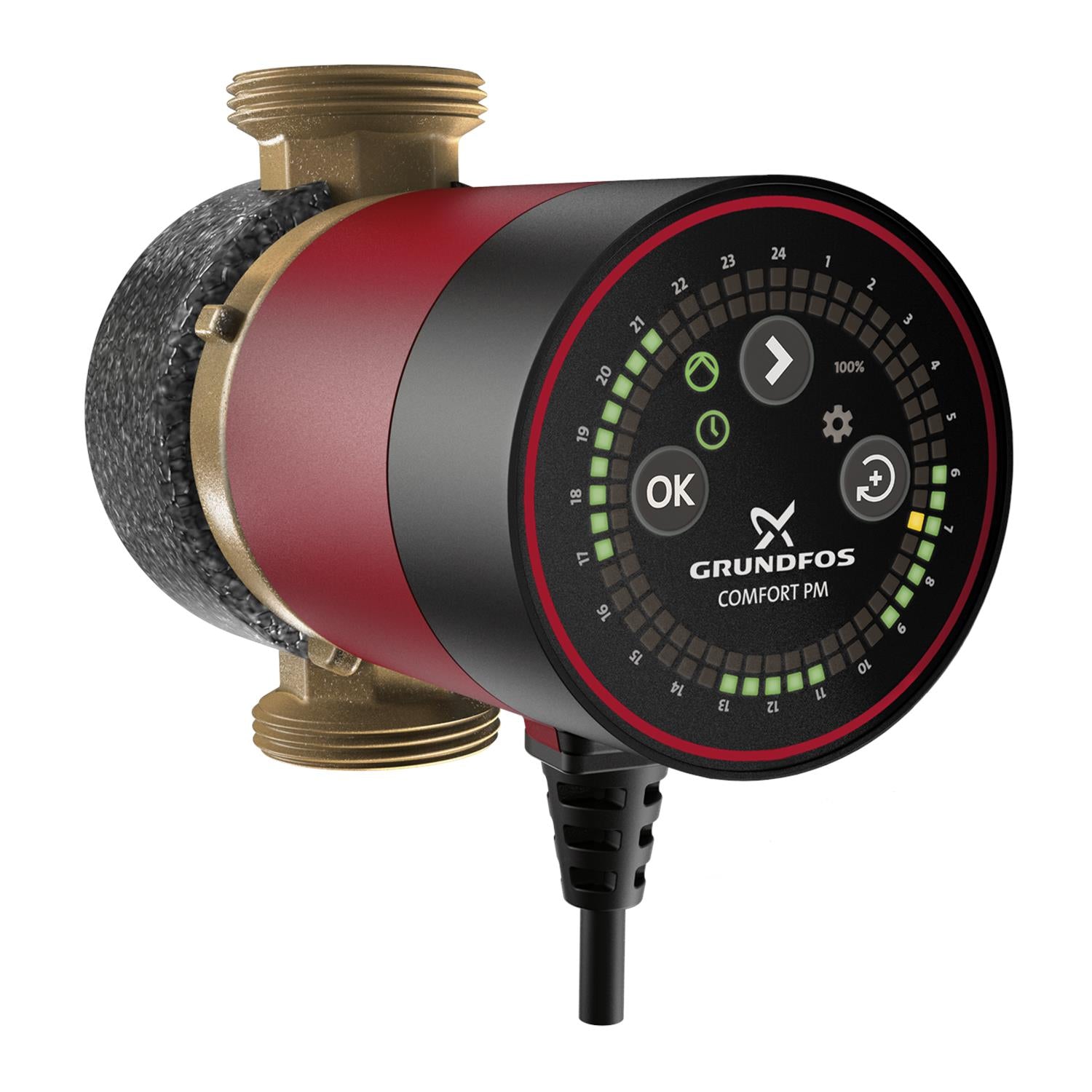

Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC
Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC
Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC
Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC
Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC
Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC

Grundfos 99812354 - COMFORT 10-16 DT PM BU/LC

Save $60.00
GRUNDFOSSKU: 99812354
Price:
$330.00 $390.00
Typically In Stock – standard inventory item, typically available in 1 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

COMFORT 10-16 DT PM BU/LC | The high-efficiency Grundfos COMFORT 10-16 DT PM BU/LC pump are designed for recirculation of domestic hot water in single and two-family houses securing hot water instantly to all faucets. The pumps have a corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase, high-efficiency ECM with permanent-magnet rotor. The integrated digital timer has been developed for domestic hot-water recirculation in systems with either hot-water tanks or plate heat exchangers for hot-water production. The timer allows you to customise the pump's operating periods, ensuring optimal comfort while lowering energy costs. Additionally, the pump can be set to continuous operation 100 %. COMFORT 10-16 DT PM BU/LC has a built-in isolating valve and a non-return valve. This ensures that maintenance can be carried out without draining the system. The non-return valve also prevents reversed flow during operation. Features and benefits: Continuous operation can be set for commissioning of the pump or 24 hours instant hot shower and tap water.
Quick and simple electrical installation.
Dry-running protection protects the pump against dry running during startup and normal operation.
Easy-to-clean and lime-resistant spheric rotor.
Noiseless operation due to liquid-lubricated bearing.
No leakage risk due to a static seal.
Easy maintenance and cleaning through the easy-to-separate pump head.
No additional motor protection necessary due to integrated motor electronics.

Density 61.35 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 140 °F
Type of connection NPSM
Rated voltage 1 x 115-230 V
Thermal protec Impedance protected
Pumped liquid Water
Liquid temperature range 35.6 .. 203 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 3.17 lb
Max. power input 6 W
Capacitor size - run 0.6 µF
Gross weight 3.4 lb
Current in speed 3 0.1 A
Enclosure class (IEC 34-5) IP44
Pressure rating for connection PN 10
Cable type Connecting cord with plug
Pipe connection 1 1/4" NPSM
Type of cable plug NEMA 1-15P
Approvals UL,CSA
Rated flow 1.45 US gpm
Head max 5.25 ft
Length 4 3/8 in
Housing Brass
Rated head 1.841 ft
TF class 95
Type Connecting cord with plug
Connection PN 10
Impeller Composite
Pump housing Brass

Motor Curves

Dimensional Drawing

DWiring Diagram
