Description

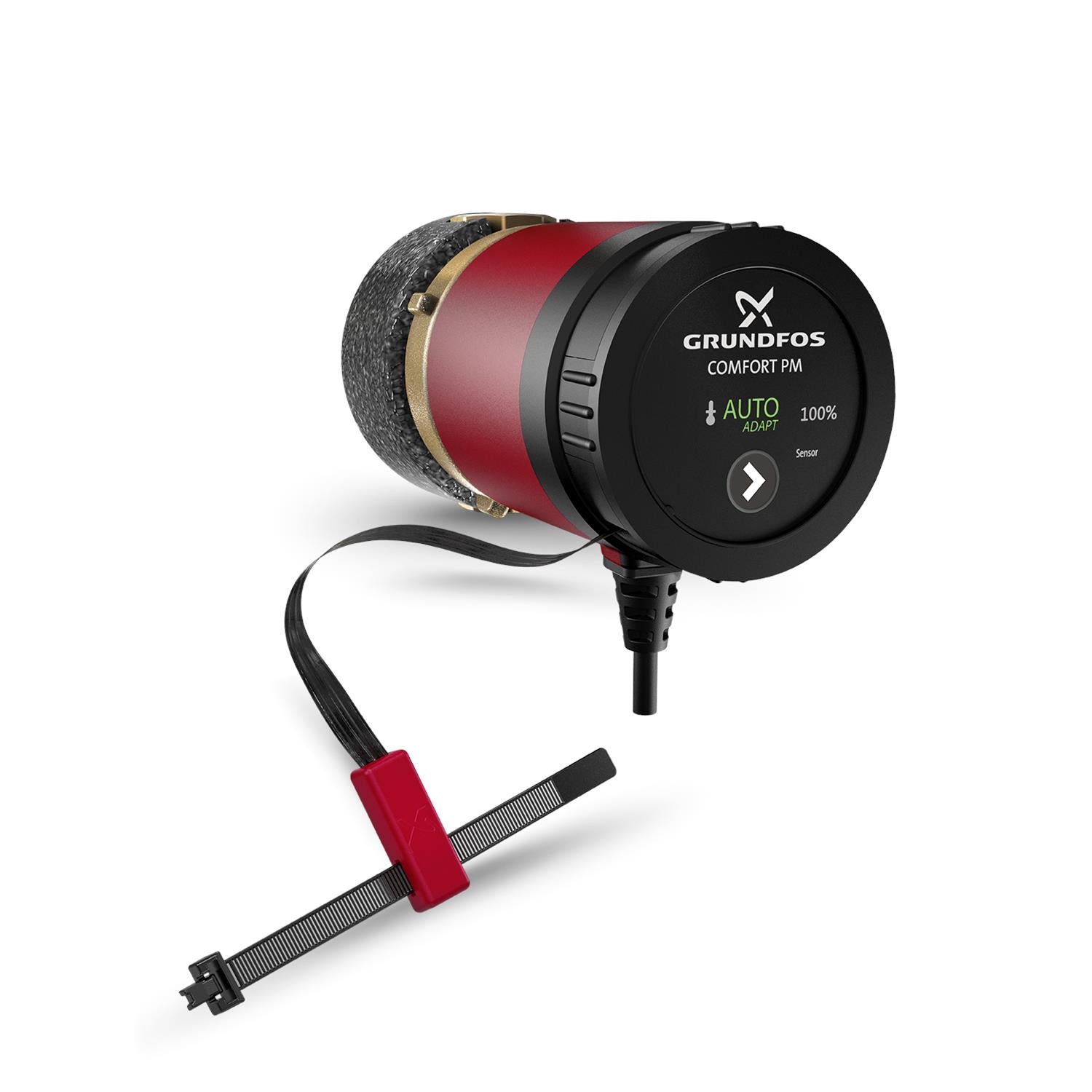

The Grundfos 98420222 (COMFORT 10-16 A PM B5/LC) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 115-230V, 1-Phase, 60 Hz. Applications include Residential hot water recirculation.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98420222 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 115-230V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Insulation Class | F |
| Protection Class (IP) | IP44 |
| Nominal Pipe Bore | 1/2" Sweat |
| Pipe Pressure Rating | PN 10 |
| Pipe Standard | USA Sweat |
| Impeller Material | Stainless steel, EPDM, PPO, PTFE, Graphit |
| Housing Material | Ecobrass |
| Approvals / Certifications | UL, CSA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 115-230V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5711494712878
- Applications
- Heating, Air-conditioning
- Approvals
- UL
- Approvals and markings
- 16 dm
- Battery back-up
- 16 dm
- Built-in motor protection
- NONE
- Cable type
- Connecting cord with plug
- Capacitor size - run
- 0.6 µF
- Colour
- 16 dm
- Connection
- PN 10
- Current in speed 3
- 0.1 A
- Density
- 61.35 lb/ft³
- Enclosure class (IEC 34-5)
- IP44
- Flow range
- 16 dm
- Gross weight
- 3.79 lb
- Head max
- 16 dm
- Housing
- Ecobrass
- Impeller
- Stainless steel
- Insulation class (IEC 85)
- F
- Length
- 80 mm
- Mains frequency
- 60 Hz
- Material Pricing Group
- 57
- Max. power input
- 6 W
- Minimum liquid temperature
- 95 °C
- Motor
- 16 dm
- Net weight
- 2.6 lb
- Number of leads
- 16 dm
- Pipe connection
- 1/2" Sweat
- Pipework connection
- 16 dm
- Pressure rating for connection
- PN 10
- Pressure retention valve
- 16 dm
- Product family
- Grundfos Comfort
- Pump housing
- Ecobrass
- Pumped liquid
- Water
- Rated voltage
- 1 x 115-230 V
- Real Time
- 1 Available on 10/12/2023 Plant: Allentown Update with real time availability and Net price
- Selected liquid temperature
- 140 °F
- Sens.interface
- 16 dm
- Speed no
- 1
- TF class
- 95
- Thermal protec
- IMPE
- Type
- Connecting cord with plug
- Type of cable plug
- NEMA 1-15P
- Type of connection
- USA Sweat
- Valve type
- 16 dm
Dimensional Drawing
Wiring Diagram
