Grundfos 98395334 - CME5-4 A-S-I-E-AQQE | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98395334

Price:
Sale price$5,695.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos CME5-4 A-S-I-E-AQQE - Horizontal End Suction Centrifugal Pump

The Grundfos 98395334 - CME5-4 A-S-I-E-AQQE is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is ideal for boosting water pressure and ensuring efficient fluid transfer in both single and multi-stage configurations.

With its robust construction and reliable operation, the CME5-4 A-S-I-E-AQQE is perfect for those seeking a dependable solution for their pumping needs. This model is part of the Grundfos Centrifugal Pumps range, specifically tagged for boosters, making it a versatile choice for various systems.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

EAN 5711494288588
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Code for rubber E
Config. file no 98499013
Connect code S
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange standard INTERNAL NPT THREAD
Gross weight 45.0 lb
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 / 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor type 90C
Net weight 37.3 lb
Primary shaft seal AQQE
Product family CME
Pump housing Stainless steel
Pump inlet NPT 1 1/4
Pump outlet NPT 1
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Rated current 9.10-7.60 A
Rated flow 24.7 US gpm
Rated head 145 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Standard INTERNAL NPT THREAD
Type 90C
Version A

Motor Curves

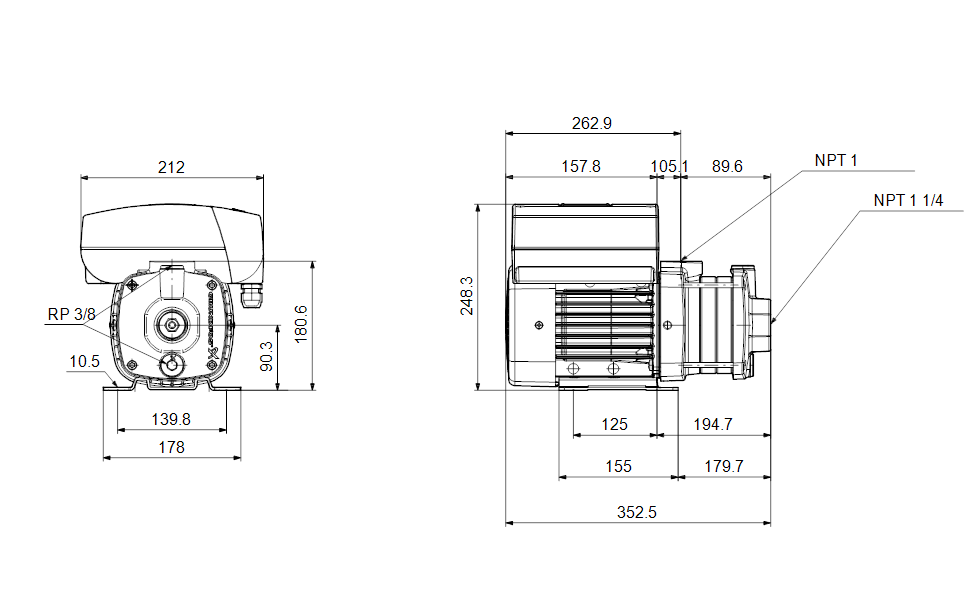

Dimensional Drawing

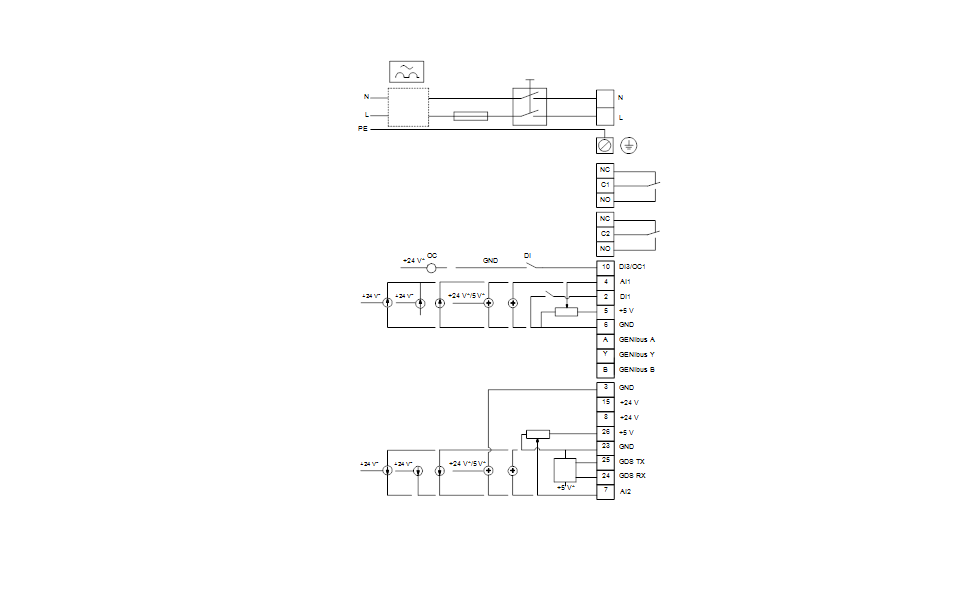

DWiring Diagram
