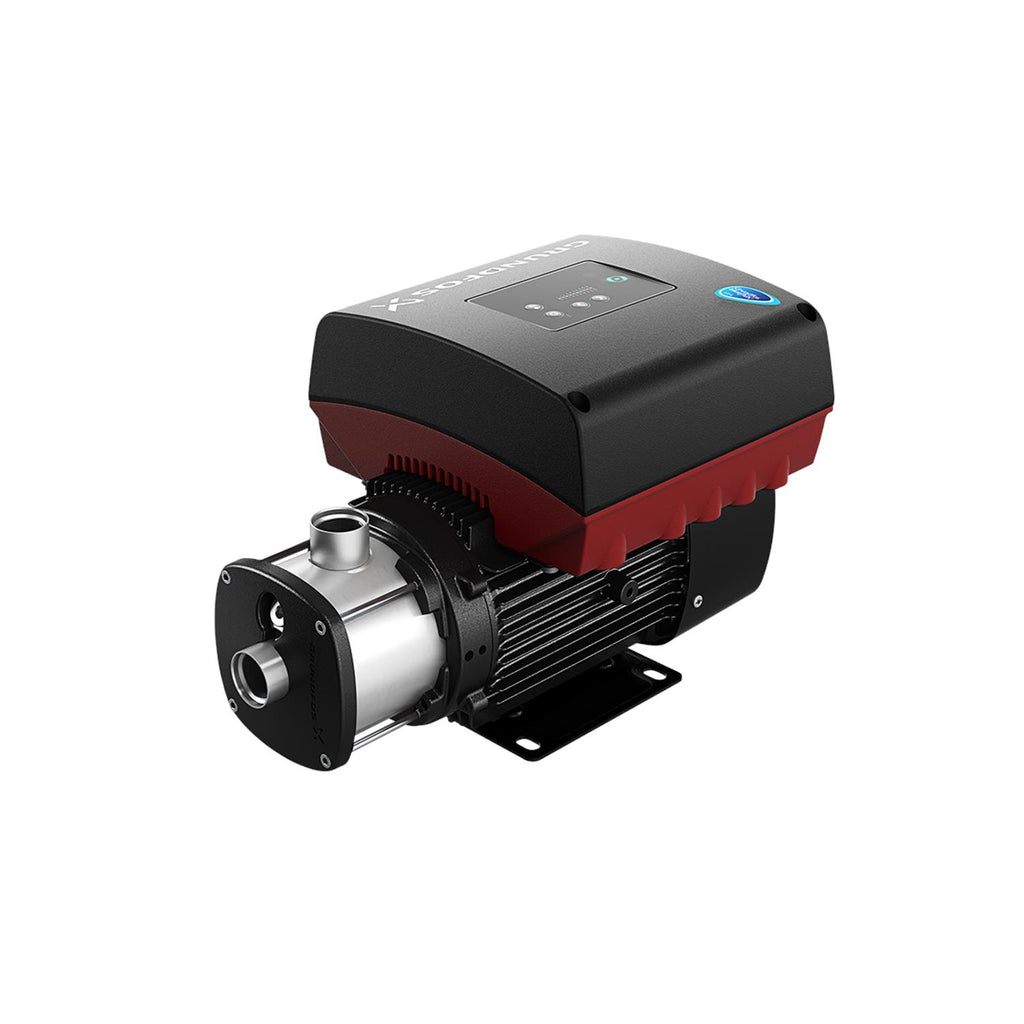

Grundfos 99077754 - CME 5-7 A-R-I-E-AQQE S-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99077754

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99077754 - CME 5-7 A-R-I-E-AQQE S-A-D-N is a horizontal end-suction centrifugal pump used in industrial and commercial fluid-handling systems, suited for operators and service technicians needing reliable replacement components.

Key features

  • Horizontal end-suction centrifugal design for general-purpose pumping
  • Compatible with CME series installations and common booster or multistage arrangements
  • Provides consistent flow and pressure for system stability and easier maintenance access

Applications

Typical uses include building services, booster stations, HVAC circulation, and light industrial process pumping where a CME-series Grundfos centrifugal is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077754

EAN 5712606315406
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100A
Frequency converter Built-in
Gross weight 72.3 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 7
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 / 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 64.6 lb
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.80-4.80 A
Rated flow 24.8 US gpm
Rated head 257.4 ft
Rated power - P2 3 kW
Rated speed 360-3456 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size 100A
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

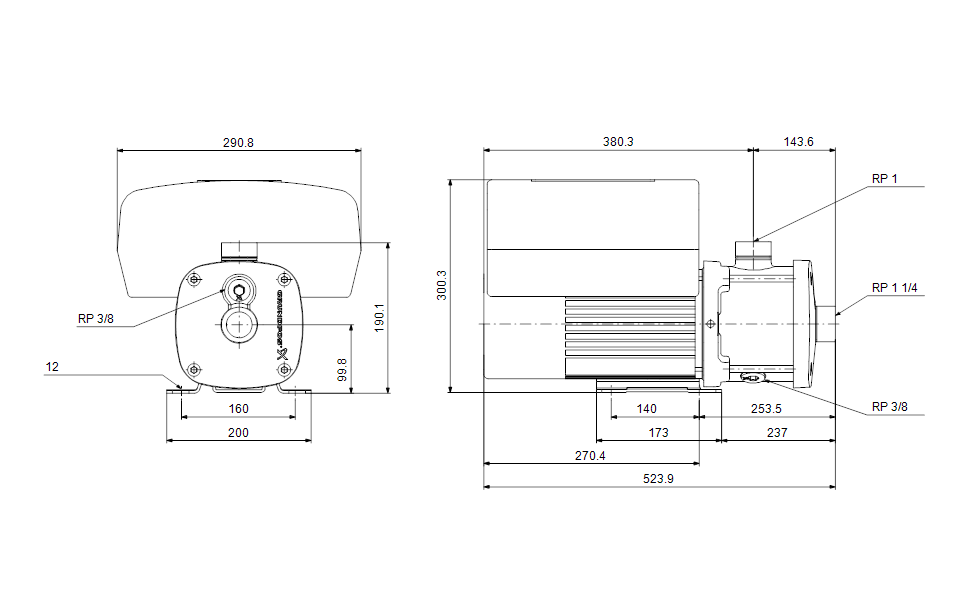

Dimensional Drawing

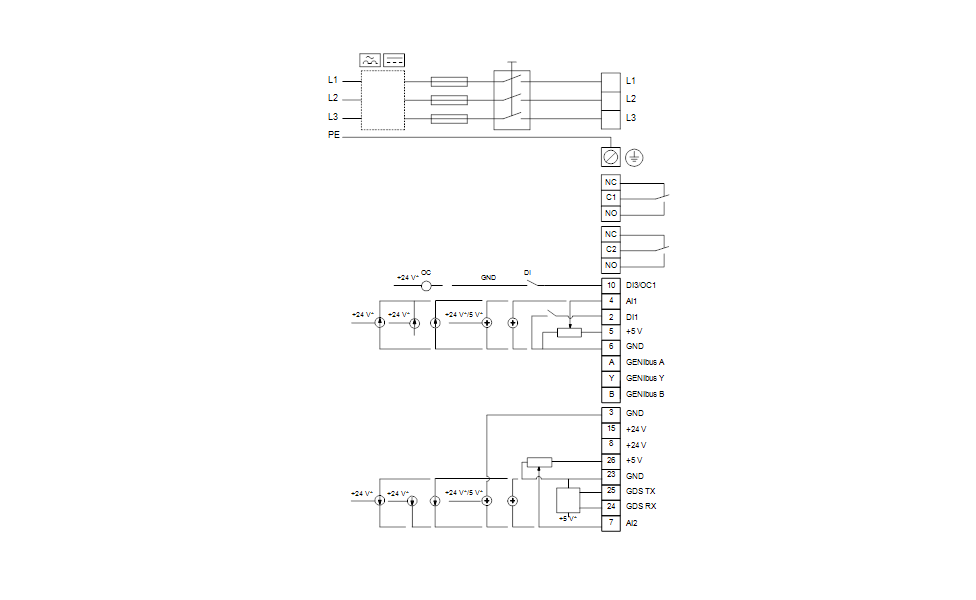

DWiring Diagram
