Grundfos 99064741 - CME 5-4 A-S-G-E-AQQE S-A-D-N | Multistage | Centrifugal | Horizontal

GRUNDFOSSKU: 99064741

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CME 5-4 A-S-G-E-AQQE S-A-D-N · Horizontal Multistage End-Suction Pump — Variable Speed
CME2.01HP380-500 VV3.0-Phase50 HzIE5IP55Stainless steel

The Grundfos 99064741 (CME 5-4 A-S-G-E-AQQE S-A-D-N) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with integrated frequency converter for constant pressure control. Nominal performance: 20.7US gpm at 145ft. Rated 380-500 VV, 3.0-Phase, 50 Hz.

Power
2.01HP
Voltage
380-500 VV
Phase
3.0-Phase
Max Flow
20.7US gpm
Max Head
145ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CME 5-4 A-S-G-E-AQQE S-A-D-N
Series: CME
Model Code: CME 5-4 A-S-G-E-AQQE S-A-D-N
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQE
Technical Specifications
Model Number 99064741
Product Series CME
Series Description Horizontal Multistage End-Suction Pump — Variable Speed
Power 2.01HP
Voltage 380-500 VV
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2900 - 4000rpm
Pump Speed 3480rpm
Full Load Current 2,9-2,4A
Motor Efficiency Class IE5
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 20.7US gpm
Nominal Head 145ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 131°F
Inlet Connection 1 1/4inch
Outlet Connection 1inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal AQQE
Approvals / Certifications CE, EAC, CURUS, UKCA
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500 VV, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CME pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CME Series
✓ Product Data Sheet — CME 5-4 A-S-G-E-AQQE S-A-D-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712606077069
Approvals CE
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 90C
Frequency converter Built-in
Gross weight 20.4 kg
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 16 bar / 90 °C
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 18.7 kg
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 2.90-2.40 A
Rated flow 4.7 m³/h
Rated head 44.2 m
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size 90C
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

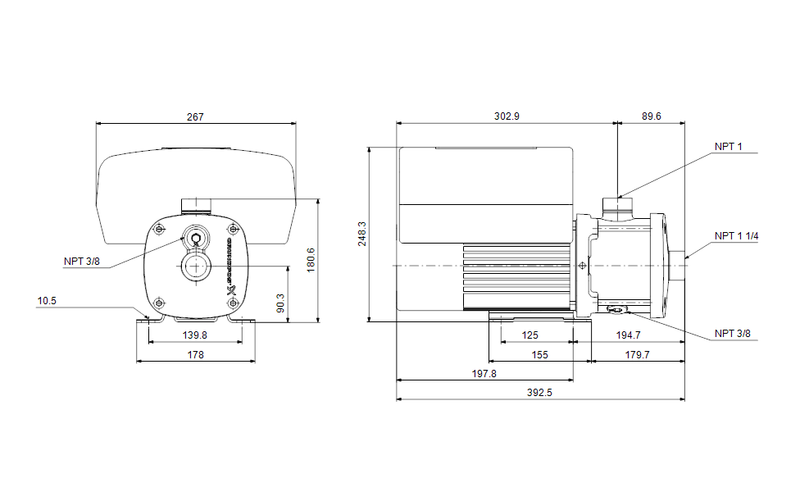

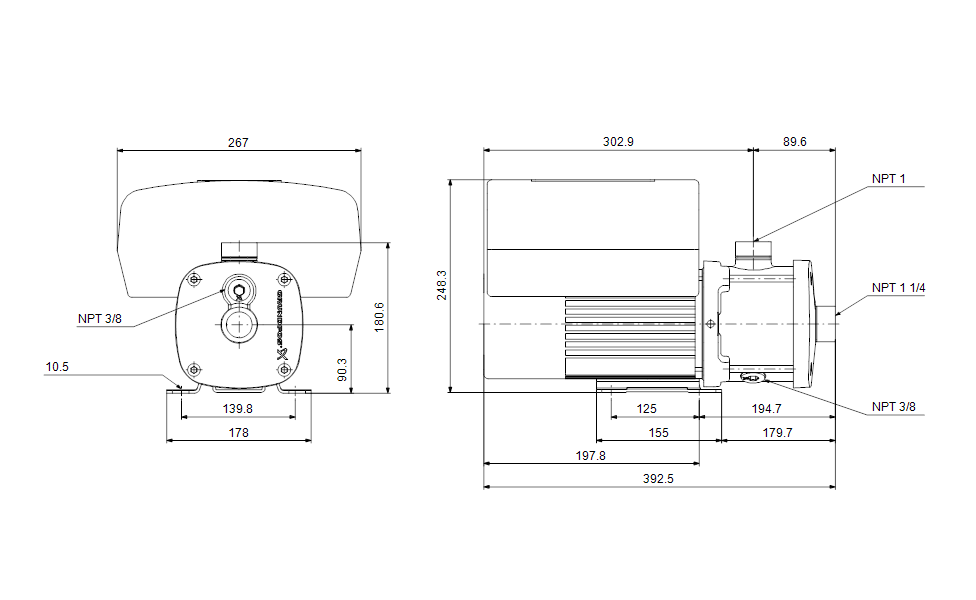

Dimensional Drawing

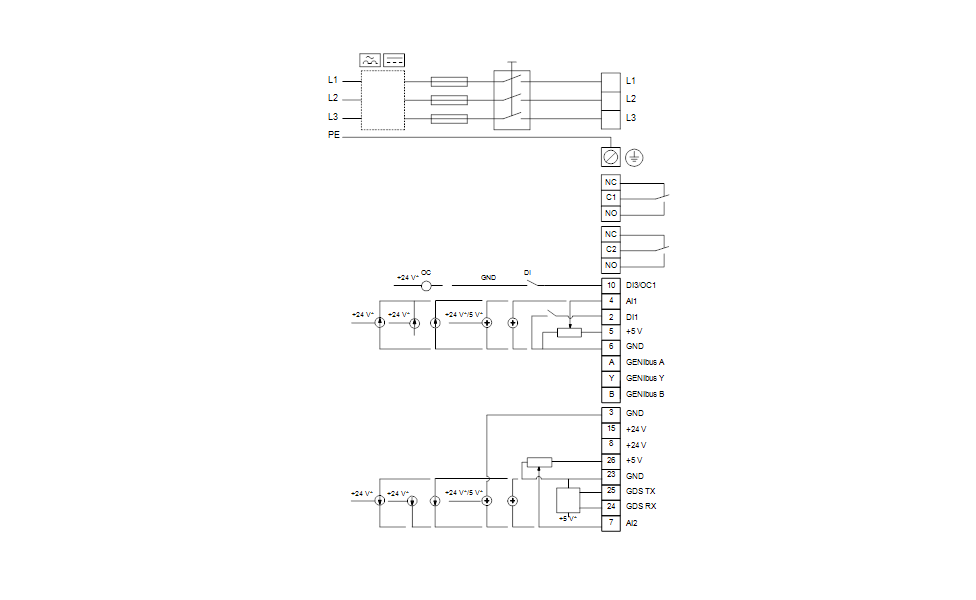

DWiring Diagram
