Description

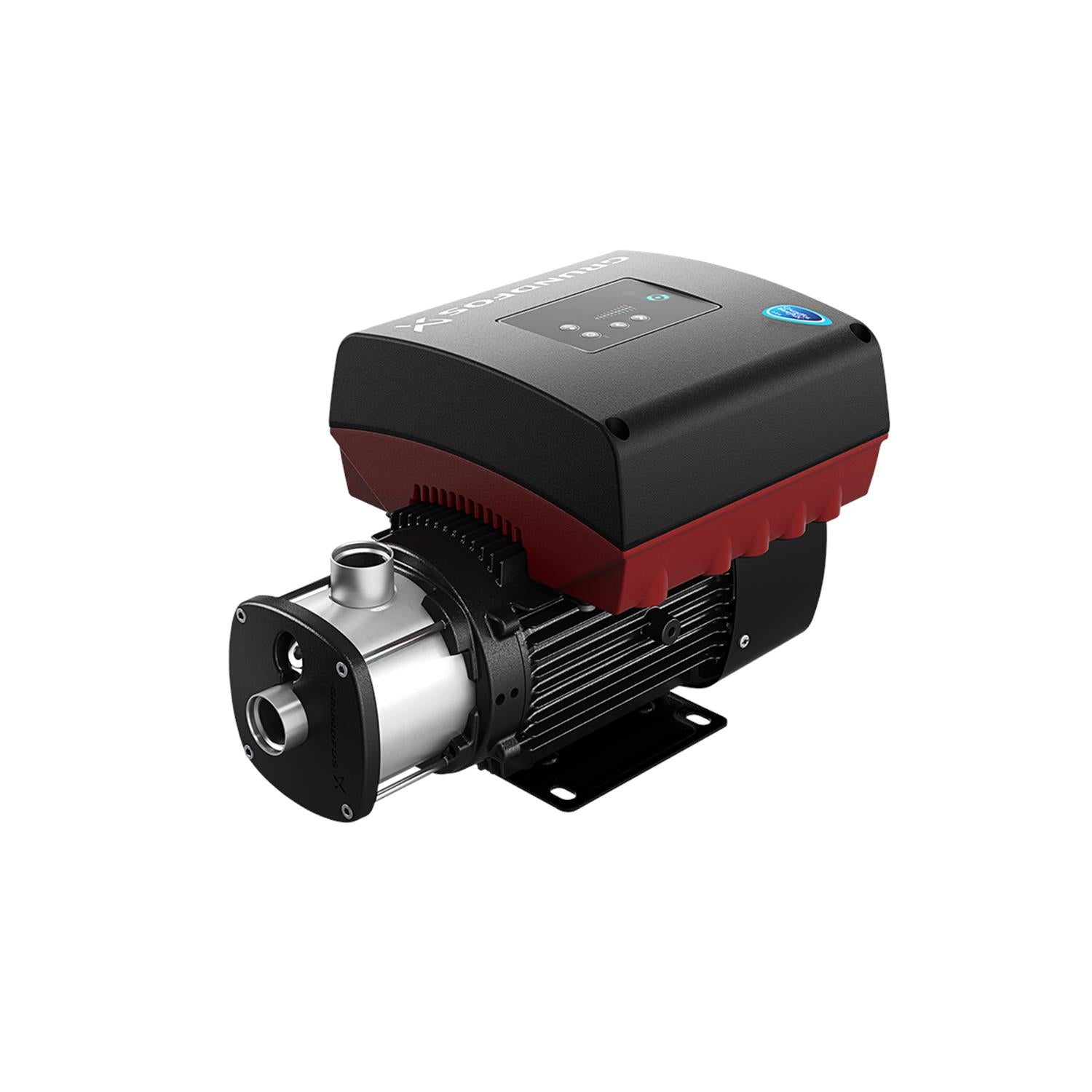

The Grundfos 99410140 (CME 3-8 B-S-I-E-AQQE T-A-A-N) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with integrated frequency converter for constant pressure control. Nominal performance: 16.4US gpm at 263ft. Rated 440-480V, 3-Phase, 50, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 99410140 |
| Product Series | CME |
| Series Description | Horizontal Multistage End-Suction Pump — Variable Speed |
| Power | 3HP |
| Voltage | 440-480V |
| Phase | 3-Phase |
| Frequency | 50, 60 Hz |
| Motor Speed | 3500 - 4000rpm |
| Pump Speed | 3480rpm |
| Full Load Current | 3.8A |
| Motor Efficiency Class | IE5 |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 16.4US gpm |
| Nominal Head | 263ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1inch |
| Outlet Connection | 1inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | AQQE |
| Approvals / Certifications | CE, EAC, CURUS, UKCA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3-Phase, 50, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CME pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals
- CE,EAC,CURUS,UKCA
- Approvals for drinking water
- WRAS,ACS,NSF61,UBA
- Code for rubber
- E
- Code for shaft seal
- AQQE
- Connect code
- S
- Connection
- NPT(F)
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Frame size
- 90D
- Frequency
- 50 / 60 Hz
- Frequency converter
- Built-in
- Gross weight
- 52.0 lb
- Housing
- Stainless steel
- IE Eff. Class
- IE5
- Impeller
- Stainless steel
- Impellers
- 8
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP55
- Liquid max temp
- 194°F
- Liquid temperature range
- -4 .. 194 °F
- Material code
- I
- Maximum operating pressure
- 232.06 psi
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor standard
- NEMA
- n rpm
- F
- Net weight
- 47.9 lb
- Outlet position
- 12
- P2 kW
- 3 HP
- Phase
- 3
- Pump housing
- Stainless steel
- Pump version
- B
- Pumped liquid
- Water
- Range of ambient temperature
- -4 .. 131 °F
- Rated current
- 3.8 A
- Rated flow
- 16.4 US gpm
- Rated head
- 263 ft
- Rated power - P2
- 3 HP
- Rated speed
- 360-4000 rpm
- Rated voltage
- 3 x 440-480 V
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Shaft
- Product name:CME 3-8 B-S-I-E-AQQE T-A-A-N
- Shaft seal
- AQQE
- Standard
- NEMA
- Suitable for 5/6 Hz
- Y
- Terminal box position
- 12
- Type of connection
- NPT(F)
- Version
- B

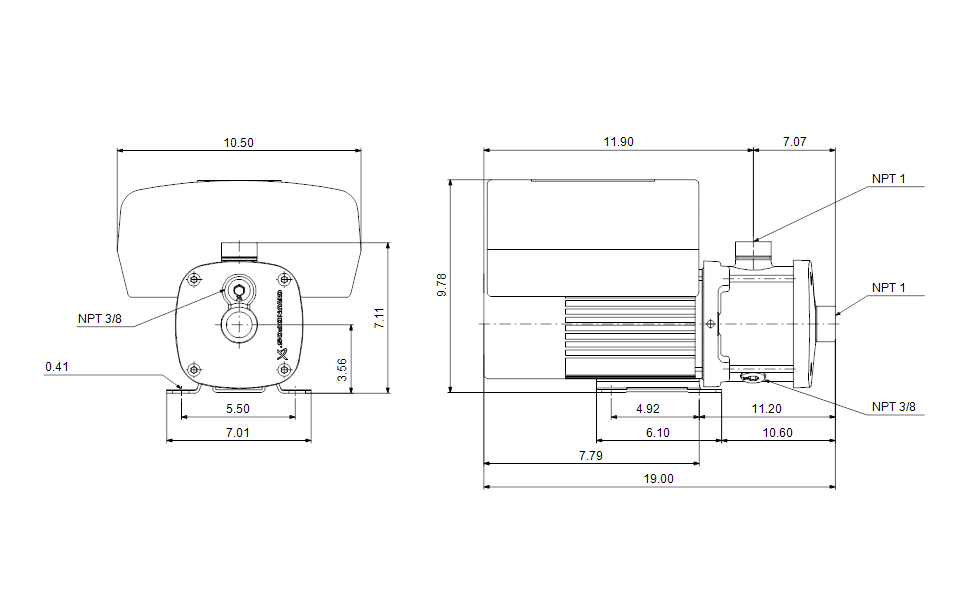

Dimensional Drawing
Wiring Diagram
