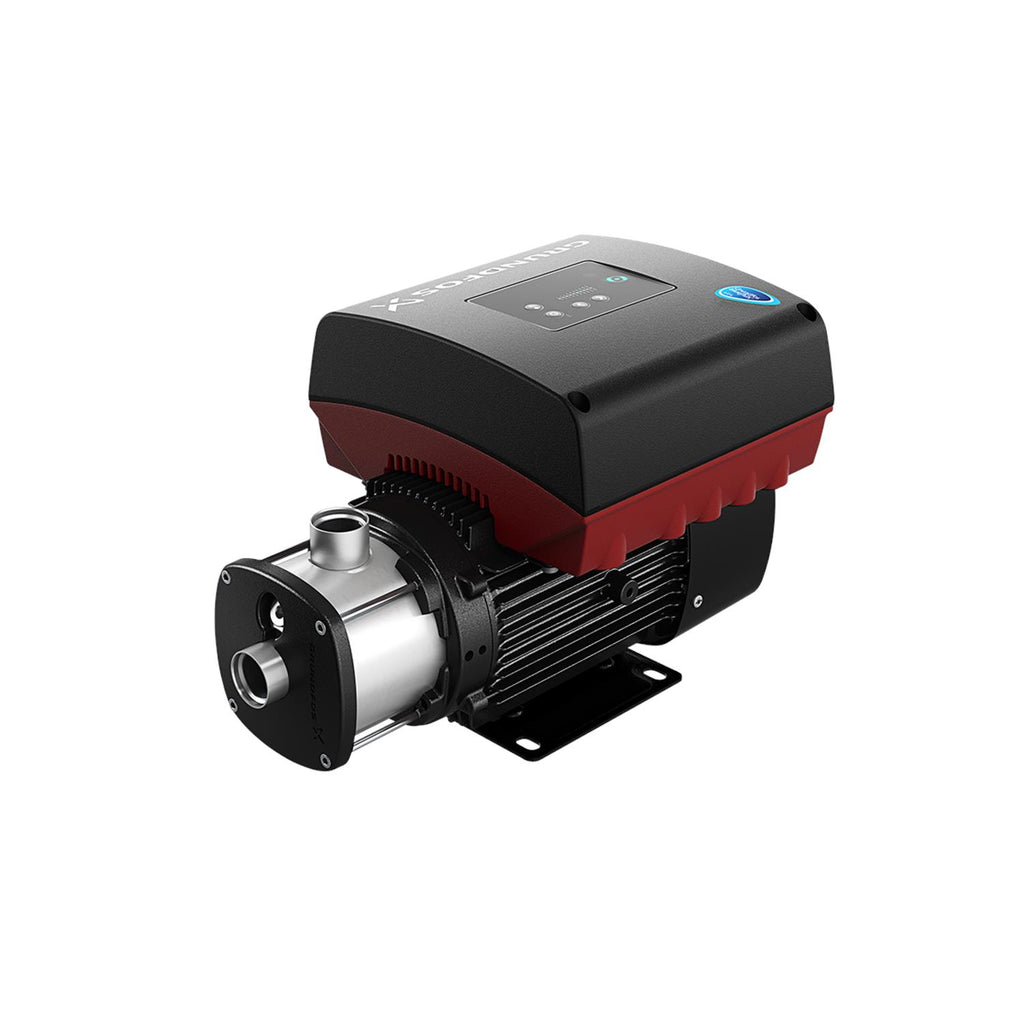

Grundfos 98395051 - CME 3-3 A-S-G-E-AVBE U-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98395051

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98395051 - CME 3-3 A-S-G-E-AVBE U-A-D-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CME series, known for its robust construction and versatility in various operational environments. Whether you need a booster pump or a centrifugal pump, the CME 3-3 A-S-G-E-AVBE U-A-D-N is designed to meet your requirements with ease.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5711494283118
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Code for rubber E
Code for shaft seal AVBE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 80B
Frequency converter Built-in
Gross weight 18.7 kg
Housing Stainless steel
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -20 .. 90 °C
Mains frequency 50 / 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 10 bar / 40 °C
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 15.2 kg
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 6.70-5.60 A
Rated flow 3.72 m³/h
Rated head 29.27 m
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size 80B
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

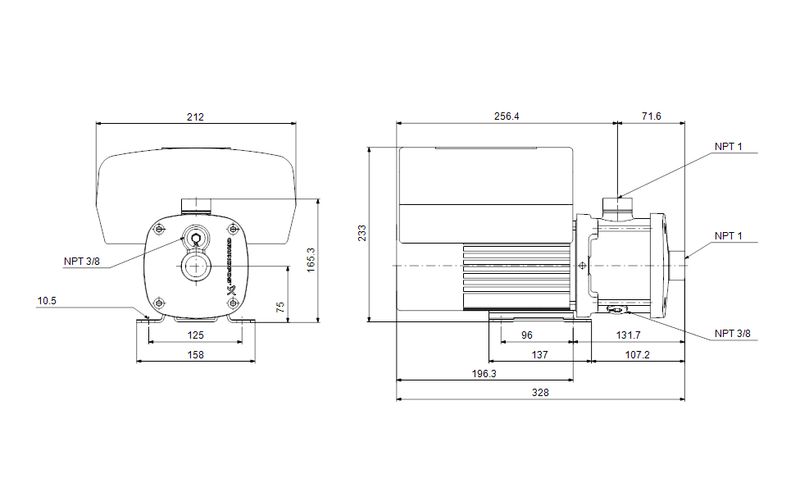

Dimensional Drawing

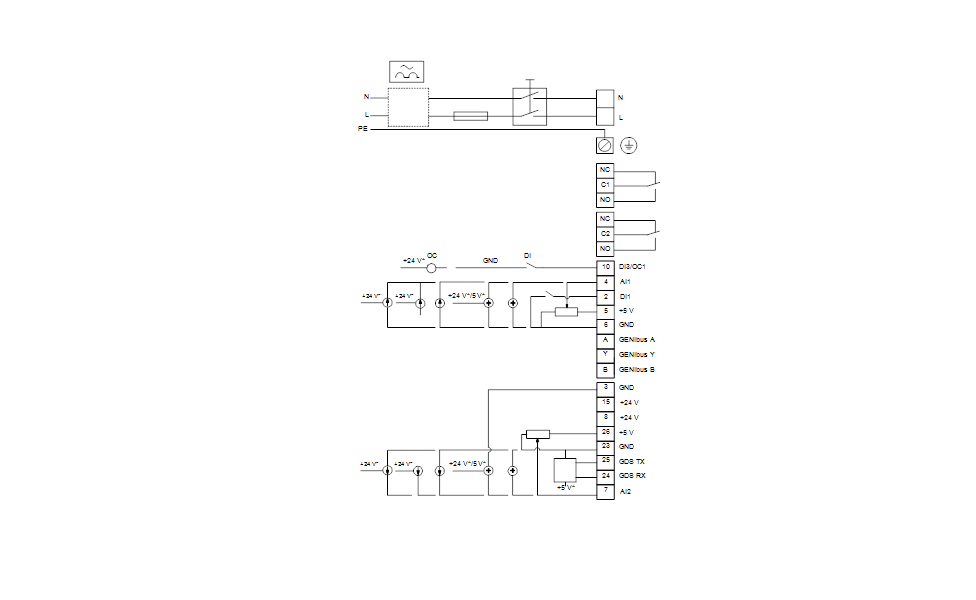

DWiring Diagram
