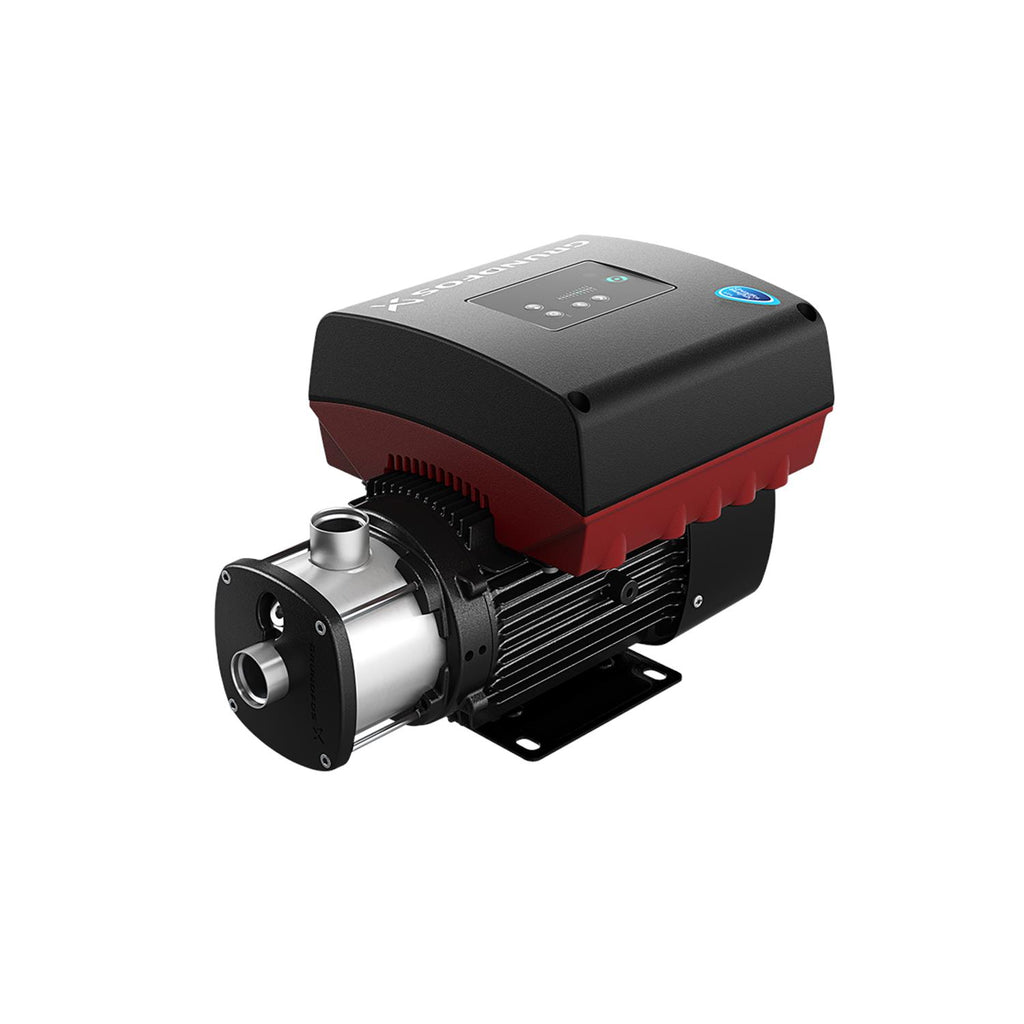

Grundfos 99176127 - CME 25-2 A-R-G-E-AQQE S-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99176127

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99176127 - CME 25-2 A-R-G-E-AQQE S-A-D-N is a horizontal end-suction centrifugal pump intended for industrial and commercial fluid handling. It fits applications needing reliable centrifugal performance and is commonly specified by maintenance teams and system integrators.

Key features

  • Manufactured by Grundfos for industrial applications
  • Horizontal end‑suction centrifugal design suitable for compact installations
  • Engineered for dependable operation and straightforward replacement to minimize downtime

Applications

Typical uses include general water transfer, booster systems, HVAC circulation, process plant supply, and light industrial services. Suitable where a compact centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99176127

EAN 5712608131912
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132F
Frequency converter Built-in
Gross weight 115.0 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 / 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.41
Model A
Motor standard IEC
Net weight 107.0 lb
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 14.1-11.2 A
Rated flow 116 US gpm
Rated head 140.2 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size 132F
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A
Danish VVS No. 385237120

Motor Curves

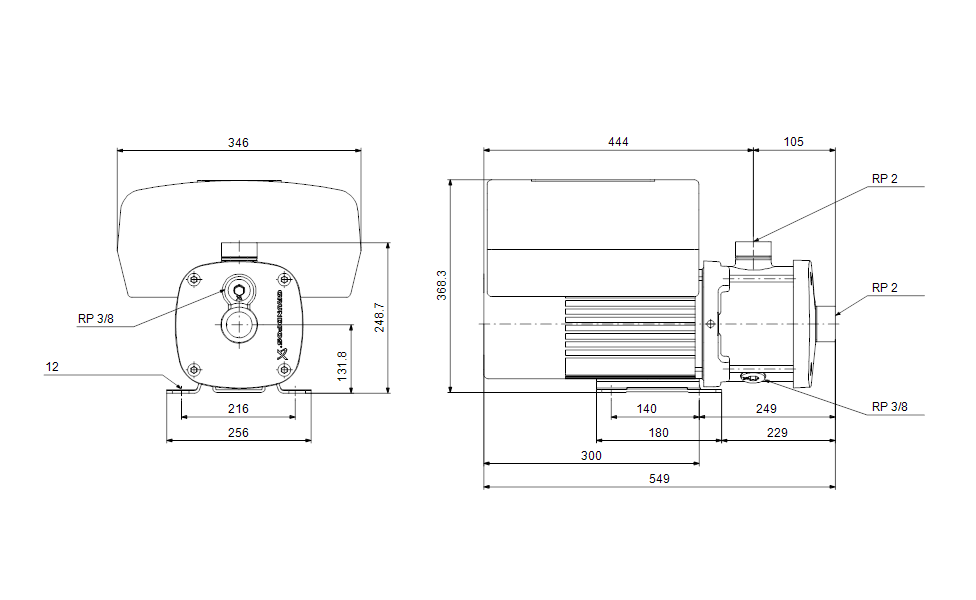

Dimensional Drawing

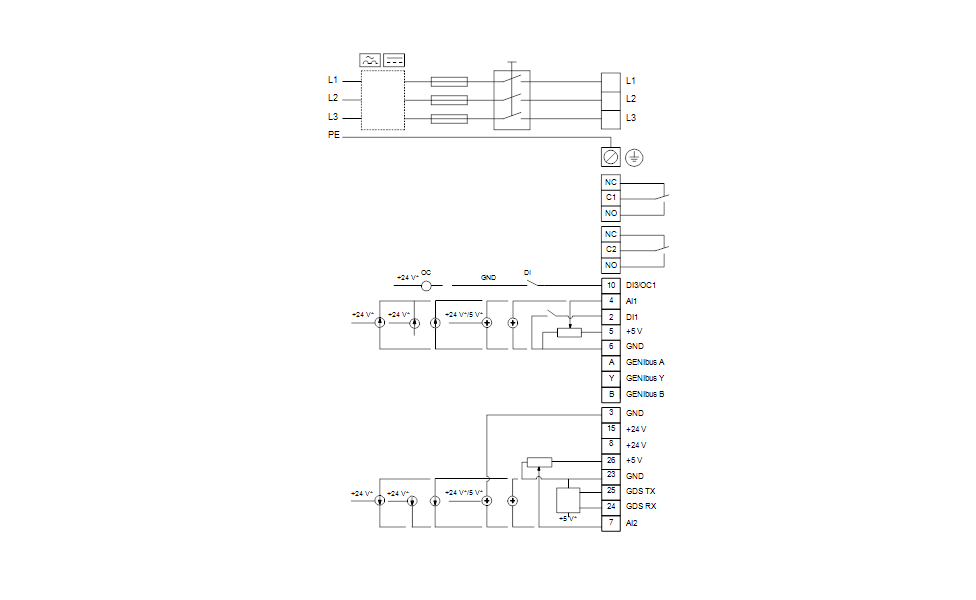

DWiring Diagram
