Grundfos 99515261 - CME 15-3 A-S-G-E-AQQE T-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99515261

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99515261 - CME 15-3 A-S-G-E-AQQE T-A-D-N is a horizontal, end-suction centrifugal pump designed for industrial service and maintenance replacement. This unit suits technicians and facilities managers needing a reliable replacement for Grundfos centrifugal systems.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Suitable for centrifugal, close-coupled and horizontal multistage installations (service special)
  • Provides dependable fluid handling with straightforward installation and maintenance benefits

Applications

Common uses include booster systems, industrial process pumping, building services, and centrifugal pump maintenance programs. Fits situations where a robust horizontal end-suction replacement is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99515261

EAN 5713830352304
Approvals CE
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112E
Frequency converter Built-in
Gross weight 107.0 lb
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.59
Model A
Motor standard NEMA
Net weight 99.1 lb
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9.10-8.50 A
Rated flow 89.8 US gpm
Rated head 197.4 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size 112E
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

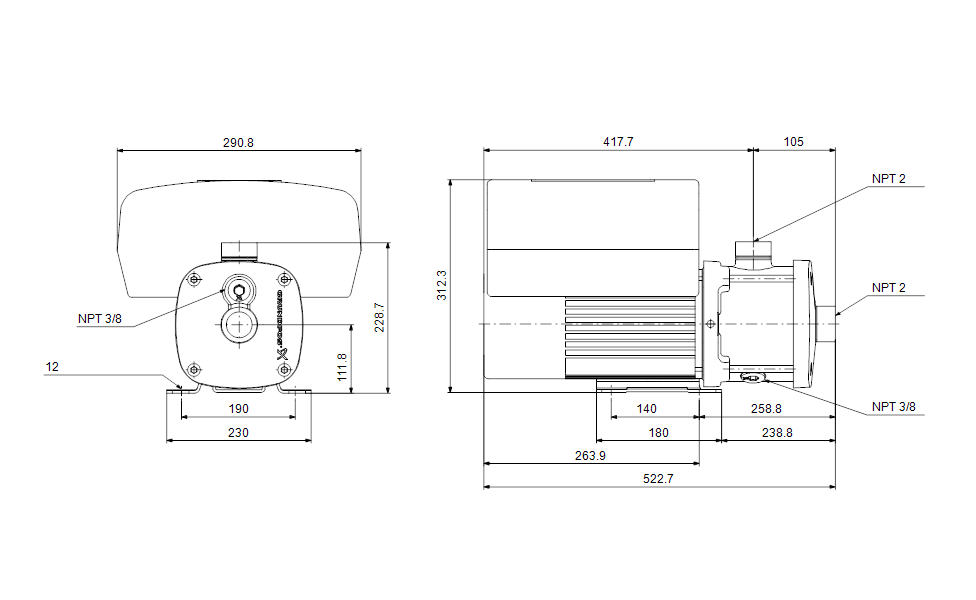

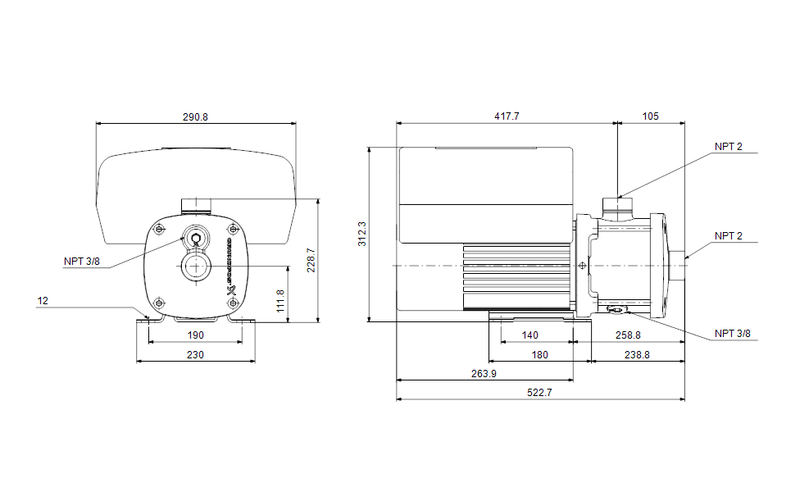

Dimensional Drawing

DWiring Diagram
