Grundfos 98395110 - CME 10-1 A-R-I-V-AQQV S-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98395110

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos CME 10-1 A-R-I-V-AQQV S-A-D-N - Horizontal End Suction Centrifugal Pump

The Grundfos 98395110 - CME 10-1 A-R-I-V-AQQV S-A-D-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for boosting water pressure and transferring fluids in various systems.

With its robust construction and advanced design, the CME series ensures optimal performance and longevity. This model is particularly suited for applications requiring a dependable and efficient pumping solution.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5711494284313
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 1/2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80B
Frequency converter Built-in
Gross weight 49.8 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 / 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.52
Model A
Motor standard IEC
Net weight 45.6 lb
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2.20-1.90 A
Rated flow 52.8 US gpm
Rated head 52.88 ft
Rated power - P2 1.1 kW
Rated speed 360-3408 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size 80B
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

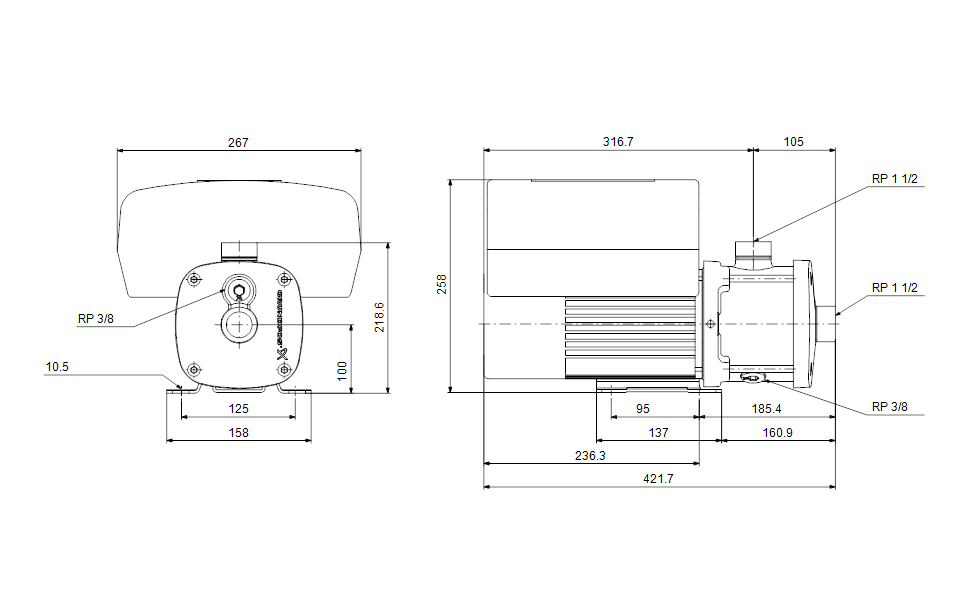

Dimensional Drawing

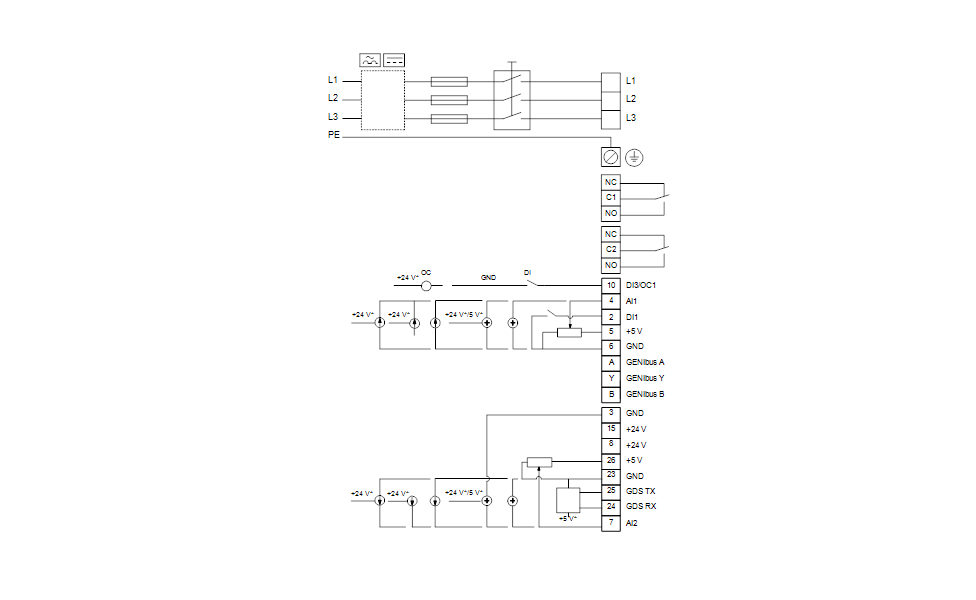

DWiring Diagram
