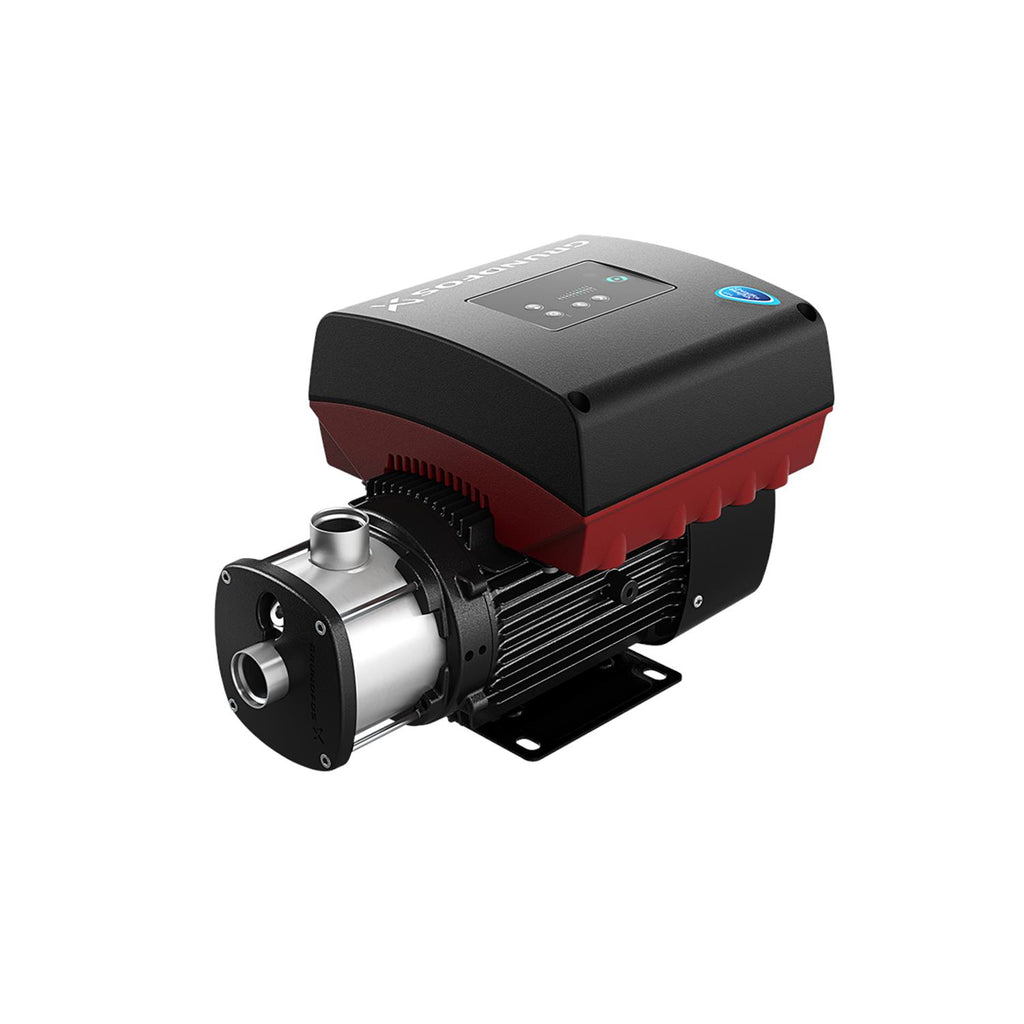

Grundfos 98395127 - CME 1-6 A-R-I-E-AQQE S-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98395127

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98395127 - CME 1-6 A-R-I-E-AQQE S-A-D-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CME series, known for its robust construction and versatility in handling various fluids. With its close-coupled design, the CME 1-6 A-R-I-E-AQQE S-A-D-N ensures easy installation and maintenance, making it a preferred option for professionals in the field.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including options for booster applications and multi-stage configurations, to find the perfect solution for your needs.

EAN 5711494284740
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80B
Frequency converter Built-in
Gross weight 44.4 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 / 60 Hz
Material code I
Material Pricing Group 31
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard IEC
Net weight 40.3 lb
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2.20-1.90 A
Rated flow 8.98 US gpm
Rated head 178.4 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size 80B
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

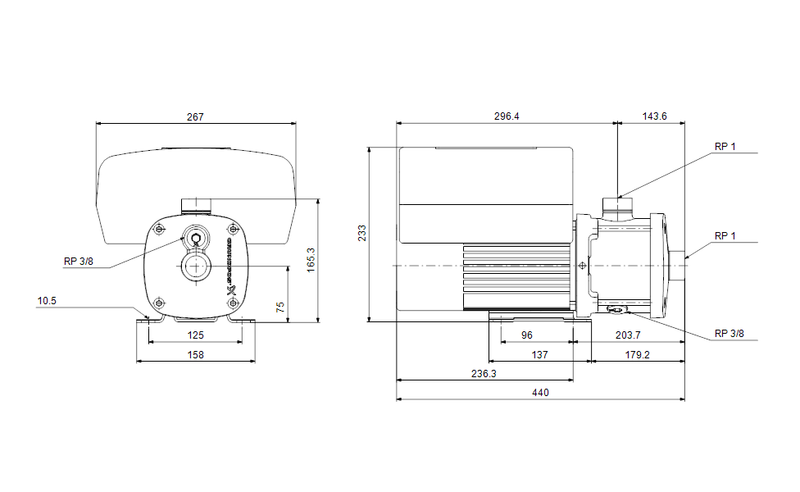

Dimensional Drawing

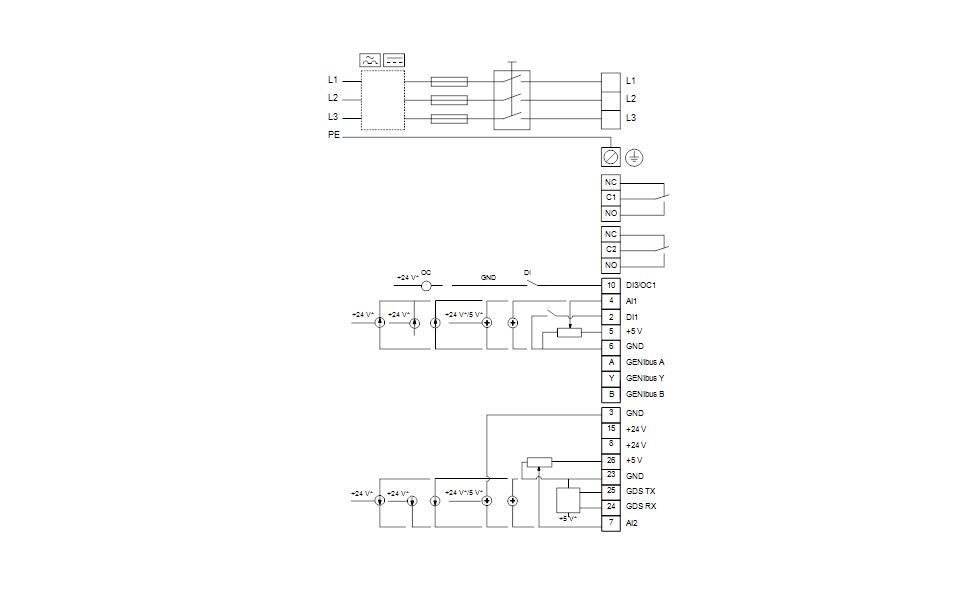

DWiring Diagram
